Ravello VAC3285BL 5-Light Integrated LED Chandelier Lighting Fixture with Globe Shades, Black


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

Features

Features

Product Inspiration:
Beyond its distinct beauty, VONN Artisan Collection is an LED energy efficient solution for any residential as well as commercial setting. While contemporary, this unique Collection will compliment any transitional or modern decor. Emphasis on design and function absolutely cannot stand short of quality. These handcrafted masterpieces have a lightweight construction and can easily be installed in minutes. The combination of glass, fabric, and metals, the Artisan Art Deco LED lighting Collection employs a variety of colors and finishes to create a distinctive and futuristic effect while preserving the elegance and style of the past.

• LED: Integrated LED fixture

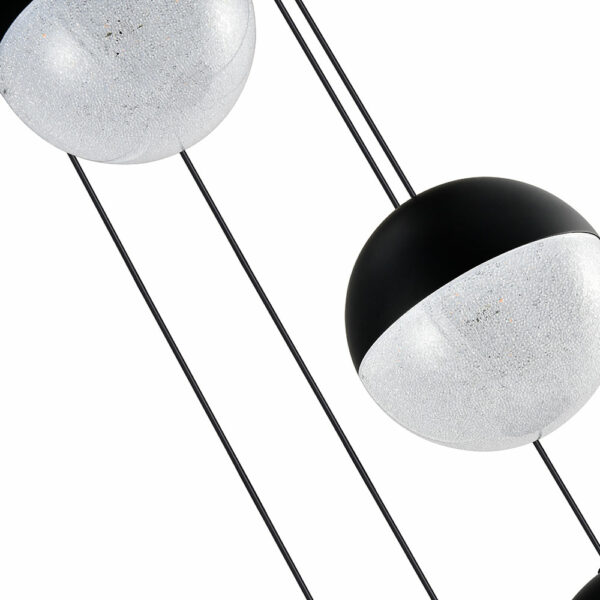

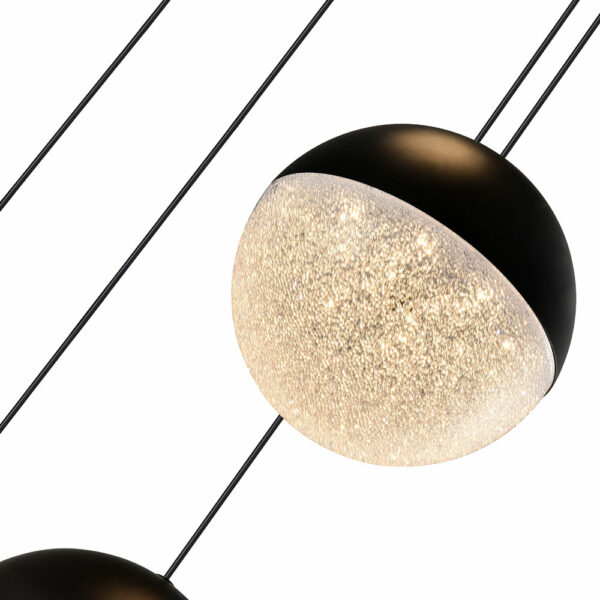

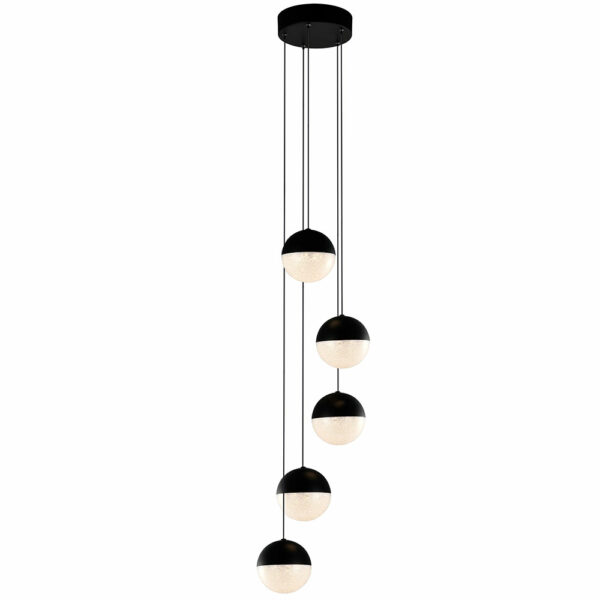

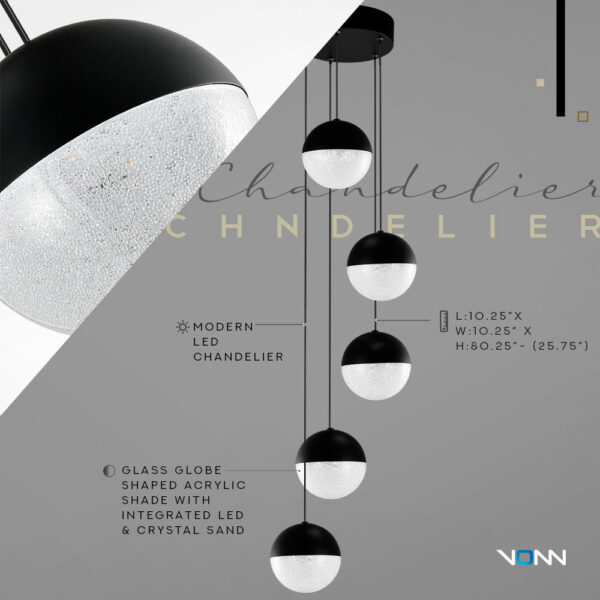

• DESIGN: Modern chandelier with 5 ball shaped acrylic shades. The shades have black top and white bottom with crystal sand inside. Canopy is black.
• LIGHT DIRECTION: Down and Ambient
• HEIGHT ADJUSTABLE: Each light independently height adjustable. Cable locking pin allow the suspension height to be easily changed post-install
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wi-Fi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 1981.40 Lumens
• EFFICIENCY: 24.90 Watts low power consumption
• CRI 90
• DRY LOCATION APPROVED: ETL listed for dry locations
• VOLTAGE: Operates on standard 120 line voltage
• ETL Certified, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• Installer Tip: DO NOT CUT WIRES attached to the fixture under any circumstance. Excess cable should be neatly looped and tucked into the canopy
• Slanted/ Sloped Ceiling Compatible
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

Product Specifications:
• PRODUCT DIMENSIONS: 10.25 inches Diameter
• OVERALL HEIGHT: minimum 25.75 inches, maximum 80.25 inches
• SHADE DIMENSIONS: 4.75 inches Diameter, 4.75 inches H

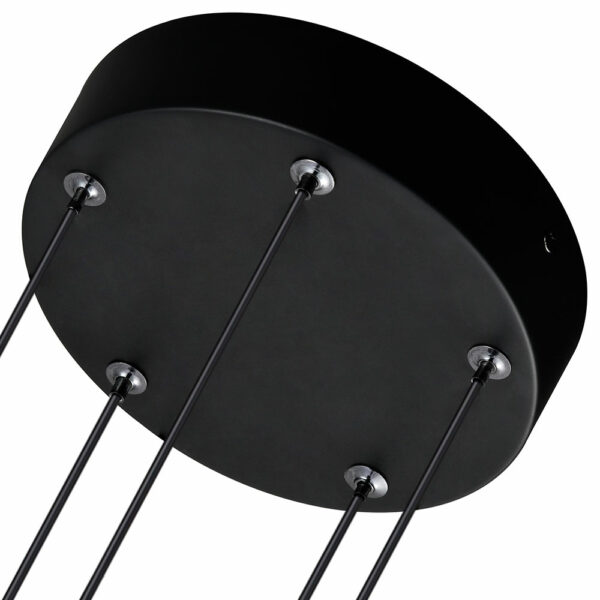

• CANOPY DIMENSIONS: 6.75 inches Diameter x 1.5 inches H
• CABLE: Electrical Wire length 74 inches
• PRODUCT WEIGHT: 5.4 Lbs.
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***

Specifications

Additional information

Power Source

Shade Color

Shade Height (In.)

Dimmable

Warranty

Hanging Device

Sloped Ceiling Compatible

Color Rendering Index

Canopy Width (In.)

Canopy Length (In.)

Product Length

Assembly Required

Average Hours

Shade Description

Product Maximum Height

Shade Shape

Shade Type

Shade Diameter (In.)

IES Wattage

Certifications

, , , , ,

Product Minimum Height

Product Width

Shade Material

,

Finish

LIght Direction

Canopy Height (In.)

UL / ETL Rated

Color Temperature

Voltage (V)

Lumens

IES Lumens

Total Wattage

UPC / GTIN

Series

,

LED Type

Availability

Installation Type

Product Dimensions (LxWxH)

Style

,

Shape

Room

, ,

Features

, ,

Product Height

Height Adjustable Min

Product Depth (in.)

Lm/w

IP Rate

Materials

, ,

Product Type

Technical Docs

Technical Docs

Installation Guide Download
Specification Sheets Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
