Procyon VMW11700AL 24″ Integrated AC LED ADA Compliant Bathroom Lighting Fixture in Silver


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

Features

Features

Product Inspiration:

Purposeful lighting design is decided by compact, defined shapes. The prominent block architecture of the Procyon collection embodies this stance on design, allowing the bathroom to be viewed on the whole, not by its parts. In addition to its sleek and minimalistic design, Procyon AC LED fixture, is also Dimmable, Energy Efficient and ADA compliant.

Product Features:

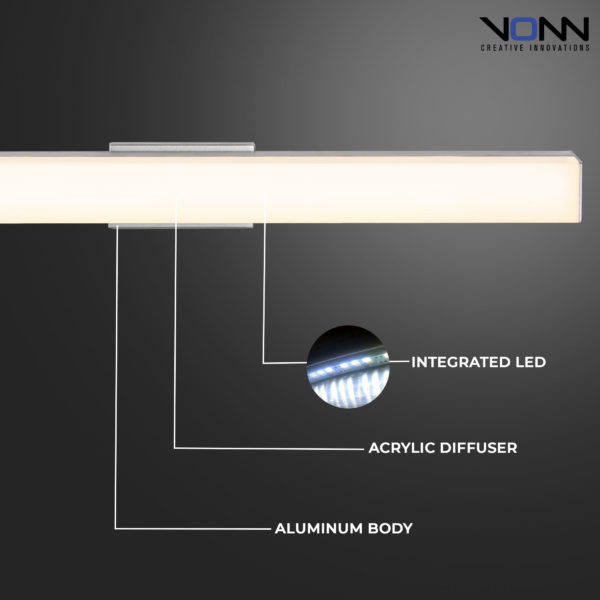

• LED: Integrated AC LED fixture
• DESIGN: Slim profile with brilliant, full bodied glow
• LIGHT DIRECTION: Ambient
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wifi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 1354 lumens
• EFFICIENCY: 25 watts total consumption
• DAMP LOCATION APPROVED: ETL listed for damp locations
• CRI 90
• VOLTAGE: Operates on standard 120 line voltage
• ETL Certified, cETL, ADA Compliant, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

Product Specifications:

• PRODUCT DIMENSIONS: 24 inches W x 3 inches D x 2.25 inches H
• SHADE DIMENSIONS: 24 inches W x 2.25 inches D x 1.75 inches H
• BACKPLATE DIMENSIONS: 4.5 inches W x 0.5 inches D x 2.25 inches H
• PRODUCT WEIGHT: 2.3 Lbs.
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***

Specifications

Additional information

UPC / GTIN

Style

,

Lm/w

Height Adjustable Min

Features

Product Length

Power Source

Room

Availability

Shape

,

Product Type

IP Rate

Reversible Installation

Shade Material

Shade Color

Shade Height (In.)

Shade Width (In.)

Shade Length (In.)

Backplate Height (In.)

Backplate Depth (In.)

Product Dimensions (LxWxH)

Color Rendering Index

Full Backplate

Average Hours

Ship Type

Number of Boxes

Carton Weight (lbs.)

Carton Height (In.)

Carton Width (In.)

Carton Length (In.)

Carton (L, W, H)

Shade Type

Shade Shape

Backplate Width (In.)

Materials

, ,

Compliances

, , , , , ,

Finish

Warranty

Install Position

,

LIght Direction

Product Height

Product Depth (in.)

Product Width

Dimmable

Shade Description

Series

Product Weight (lbs.)

UL ETL Rated

LED Type

Color Temperature

Lumens

Total Wattage

Voltage (V)

Volume Class

Product Dimensions (mm)

Certifications

, , , , ,

Title 24

Technical Docs

Technical Docs

Specification Sheets Download
Installation Guide Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
