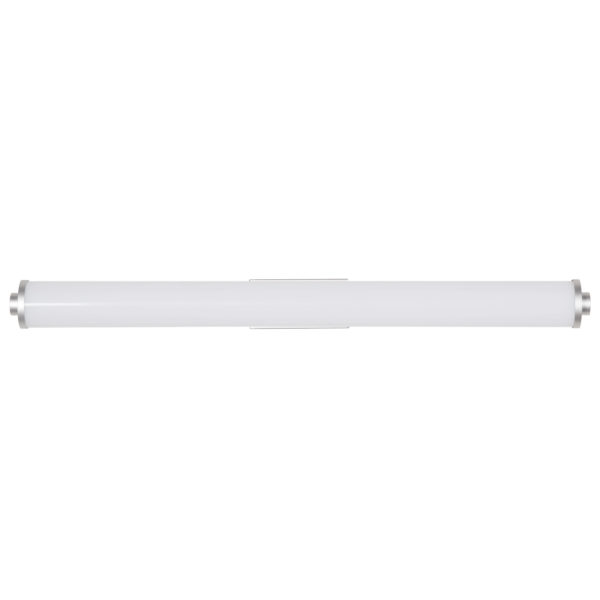

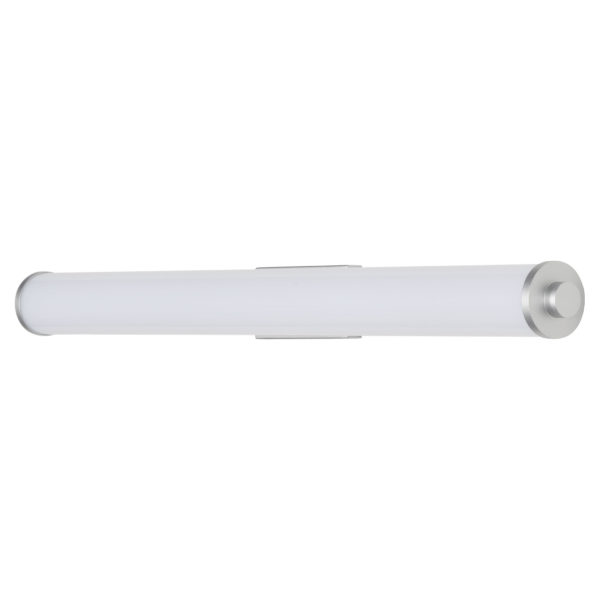

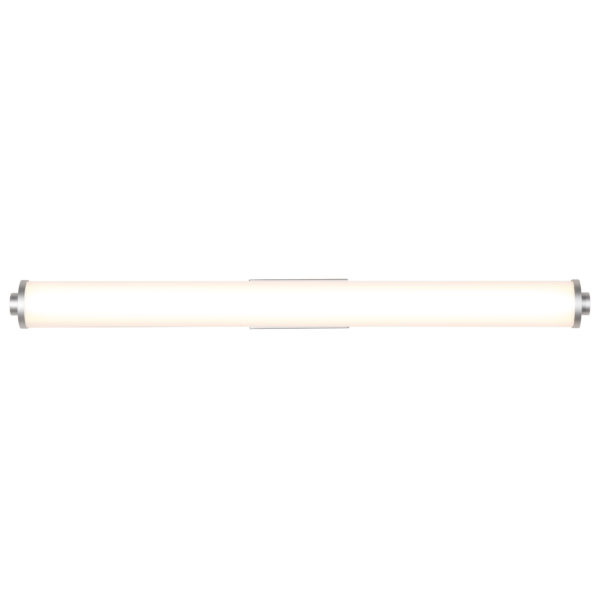

Procyon VMW11300AL 25″ Integrated AC LED ADA Compliant Bathroom Lighting Fixture in Silver


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

SKU: VMW11300AL Categories: , ,
Features

Features

Product Inspiration:

Purposeful lighting design is decided by compact, defined shapes. The prominent block architecture of the Procyon collection embodies this stance on design, allowing the bathroom to be viewed on the whole, not by its parts. In addition to its sleek and minimalistic design, Procyon AC LED fixture, is also Dimmable, Energy Efficient and ADA compliant.

Product Features:

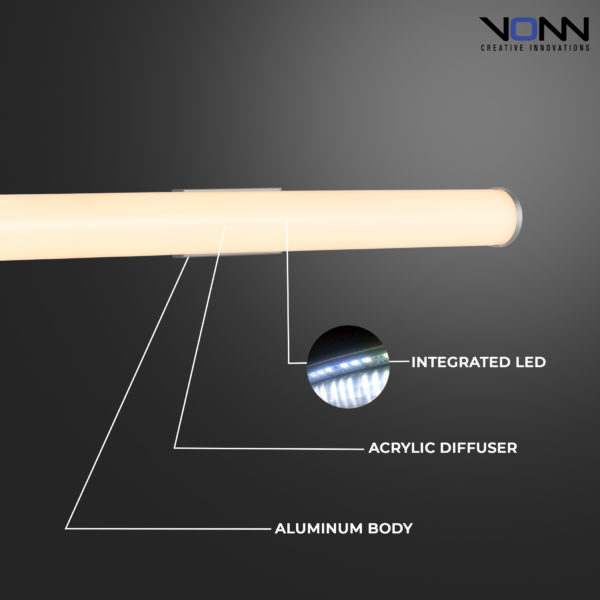

• LED: Integrated AC LED fixture
• DESIGN: Slim profile with brilliant, full bodied glow
• LIGHT DIRECTION: Ambient
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wifi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 1552 lumens
• EFFICIENCY: 25 watts total consumption
• DAMP LOCATION APPROVED: ETL listed for damp locations
• CRI 90
• VOLTAGE: Operates on standard 120 line voltage
• ETL Certified, cETL, ADA Compliant, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

Product Specifications:

• PRODUCT DIMENSIONS: 25 inches W x 2.75 inches D x 2.25 inches H
• SHADE DIMENSIONS: 2.25 inches Diameter x 25 inches W

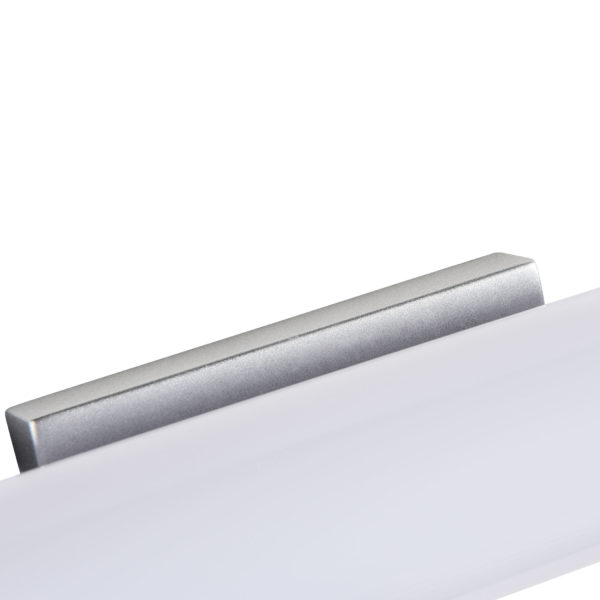

• BACKPLATE DIMENSIONS: 4.5 inches W x 0.5 inches D x 2.25 inches H
• PRODUCT WEIGHT: 2.1 Lbs.
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***

Specifications

Additional information

UPC / GTIN

Product Length

Height Adjustable Min

Features

Availability

Product Type

Power Source

Room

IP Rate

Style

,

Shape

,

Backplate Height (In.)

Carton Width (In.)

Carton Length (In.)

Carton (L, W, H)

Shade Shape

Shade Type

Shade Material

Shade Color

Shade Length (In.)

Backplate Depth (In.)

Average Hours

Shade Diameter (In.)

Backplate Width (In.)

Shade Description

Reversible Installation

Color Rendering Index

Ship Type

Number of Boxes

Carton Weight (lbs.)

Carton Height (In.)

Product Dimensions (mm)

Full Backplate

Series

Product Depth (in.)

Total Wattage

Voltage (V)

Volume Class

Product Weight (lbs.)

Finish

Warranty

Install Position

,

LIght Direction

Product Height

Lumens

Product Width

Product Dimensions (LxWxH)

Dimmable

Materials

, ,

Compliances

, , , , , ,

UL ETL Rated

LED Type

Color Temperature

Certifications

, , , , ,

Title 24

Technical Docs

Technical Docs

Specification Sheets Download
Installation Guide Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
