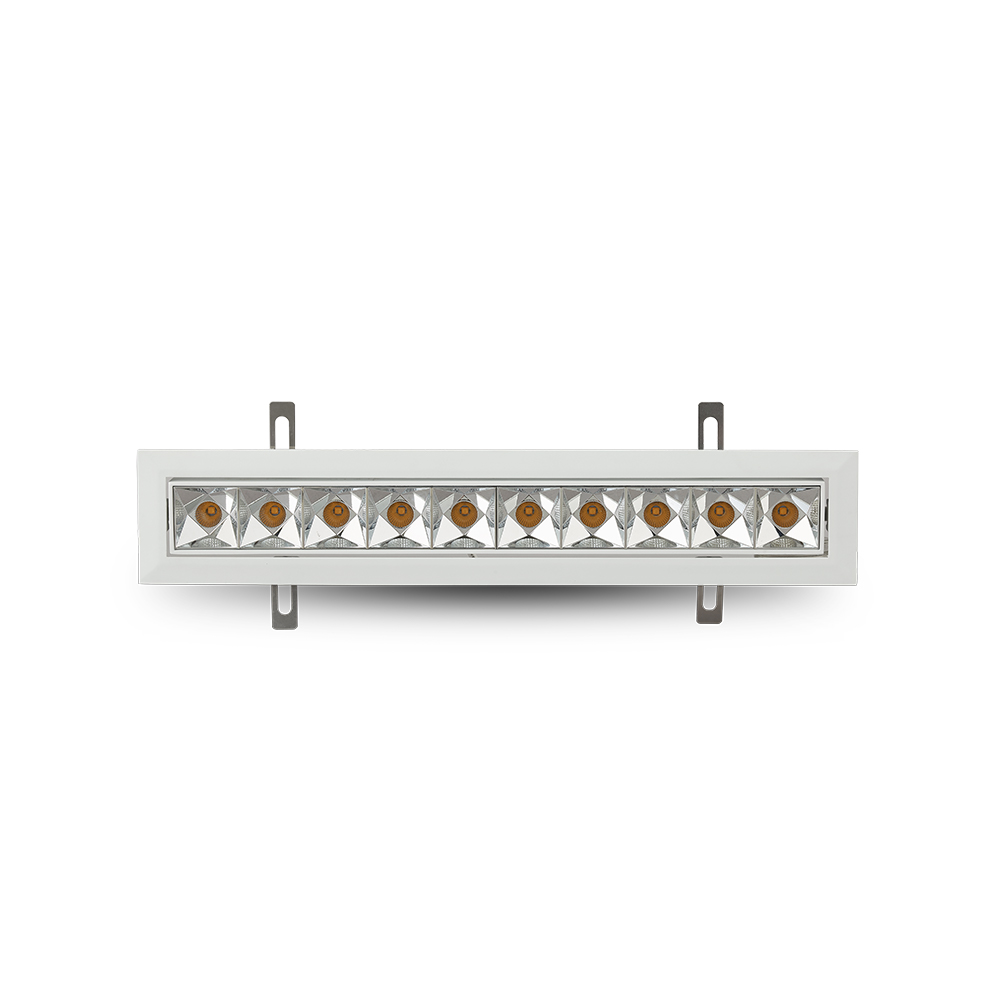

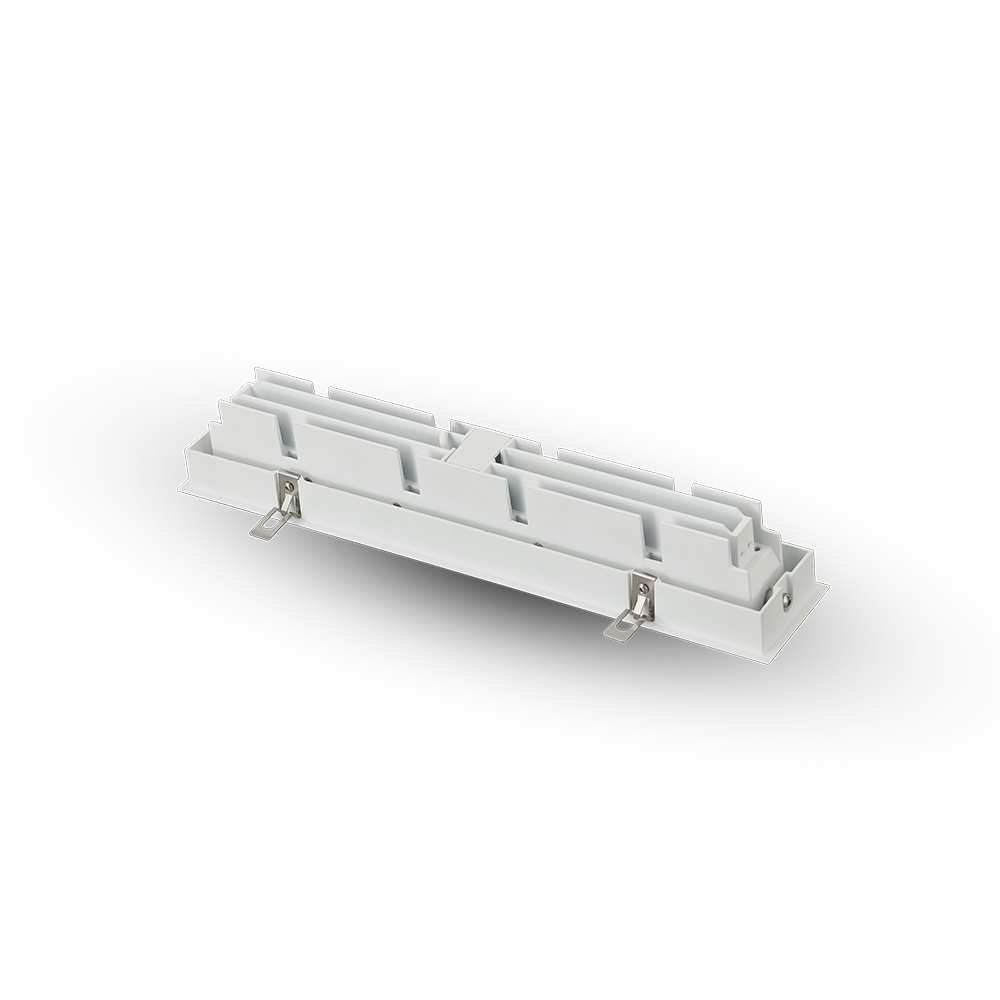

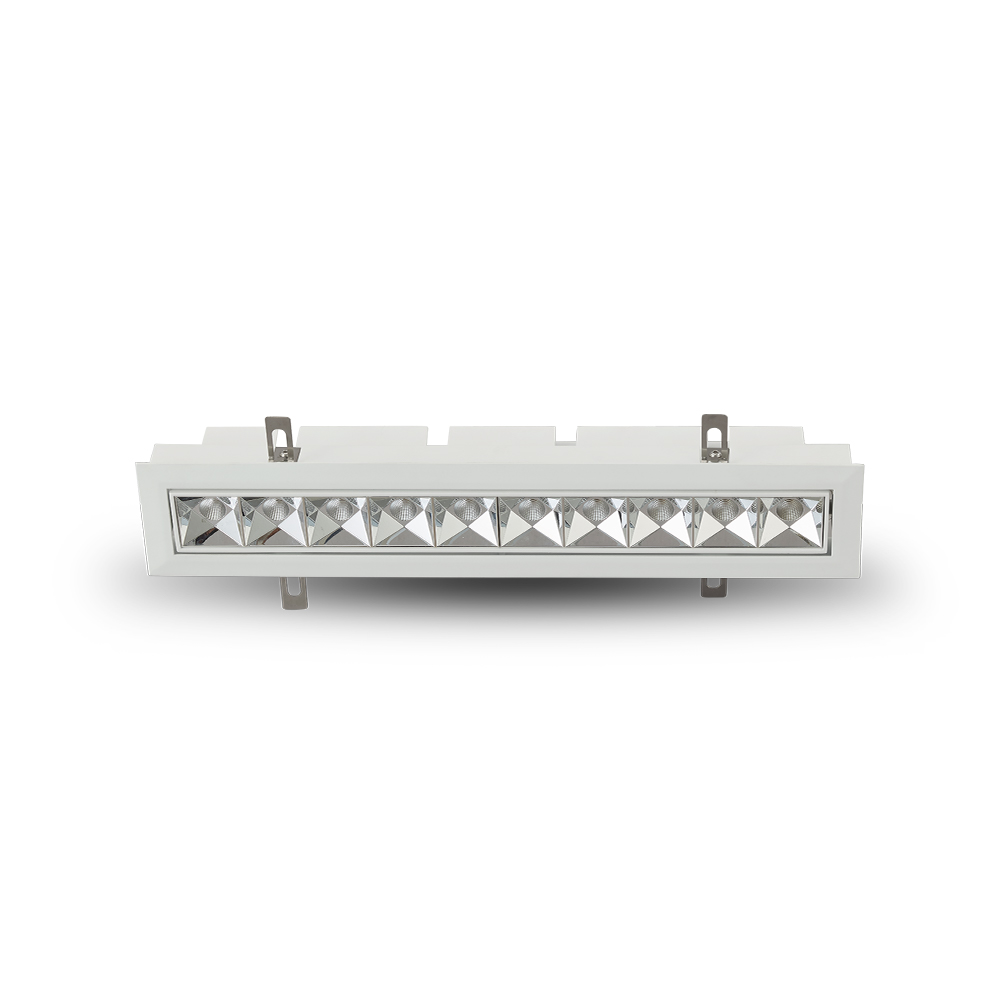

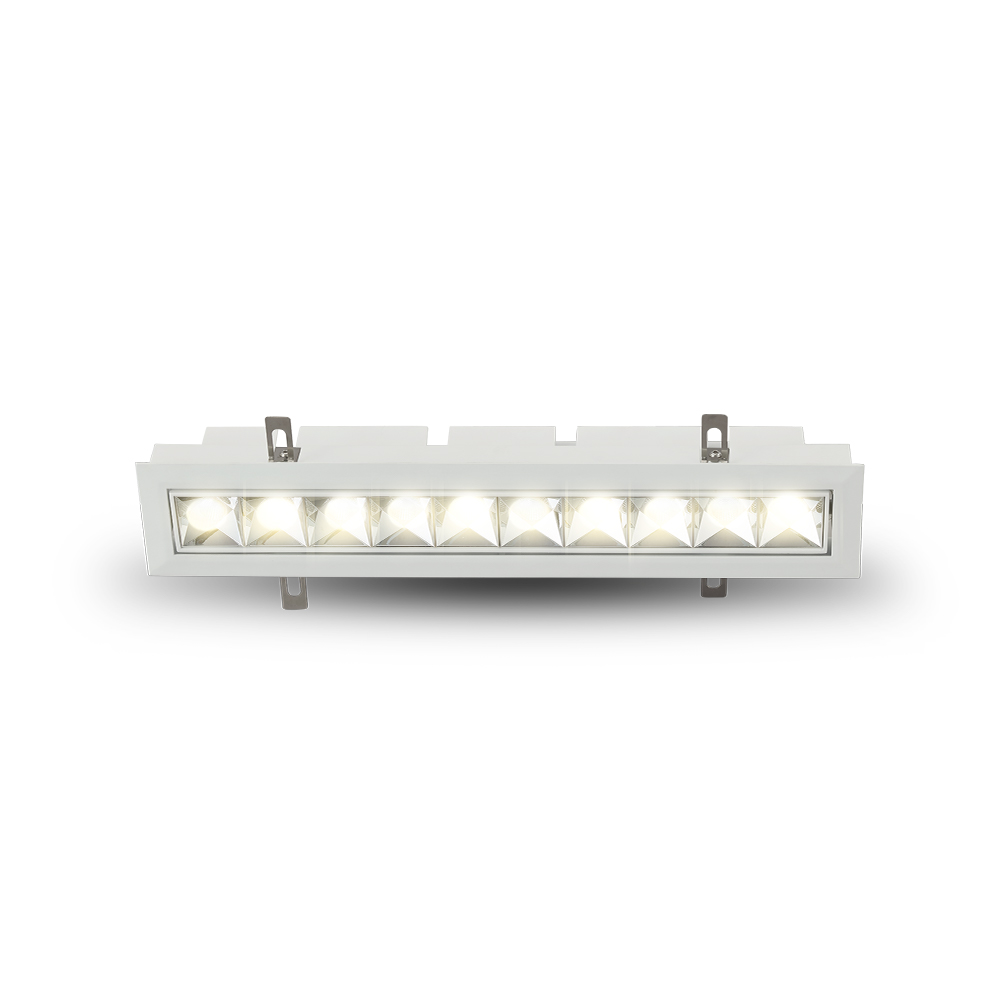

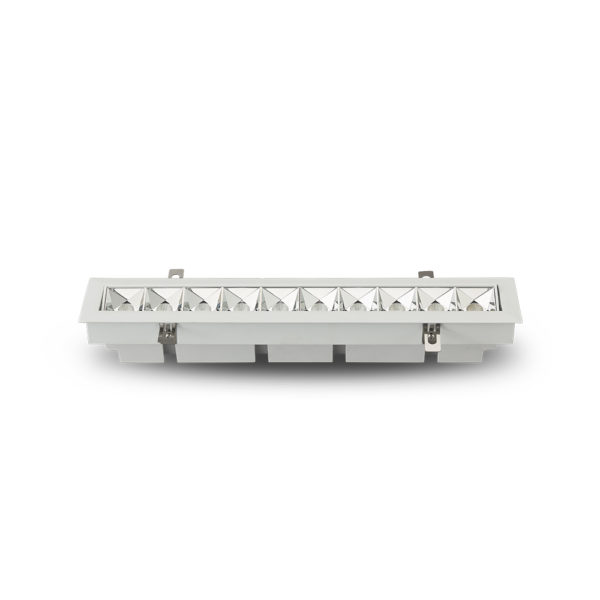

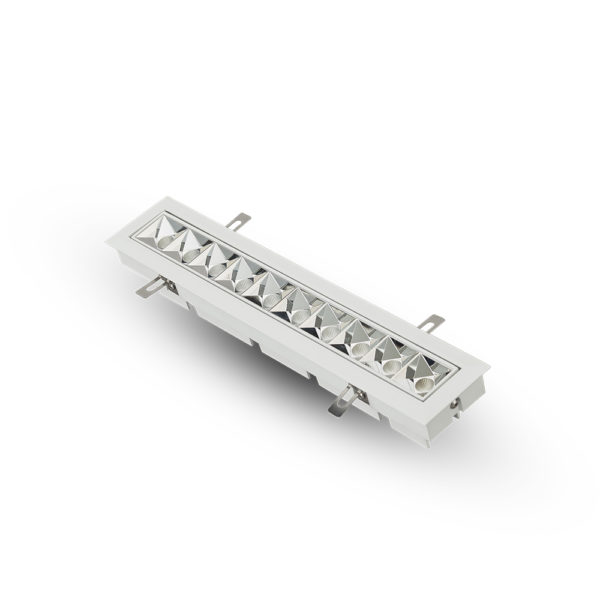

RUBIK 10 Light LED Adjustable Recessed Downlight w/Trim VMDL000610C024WH, White


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

10 Lights LED Adjustable Recessed Downlight w/Trim VMDL000610C024WH, Stock Item Beam Angle 34, White

SKU: VMDL000610C024WH Categories: , , , ,
Features

Features

LED Adjustable trim downlight, RUBIK Series

• Aluminum body structure available in White finish
• Integrated LED 10-spot fixture, recessed installation
• IC Rated
• Adjustable 15° to the left or right
• DIMENSIONS: 13.25″L x 2.5″W x 2.25″H
• HOLE SIZE: 13″L x 2.25″W
• LENS BEAM ANGLE: offered in 4 beam angles 12° & 20°, 48°(special order required), 34°(stock beam angle)
• STOCK BEAM ANGLE: 34°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 2375.56 Lumens
• WATTAGE: 24W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***

Specifications

Additional information

UPC / GTIN

CRI

Total Wattage

Room

, , , , ,

Lense Beam Angle

Finish

Product Dimensions (in)

Product Length

Product Width

Product Height

Materials

Luminous Flux (delivered) (Lm)

Series

Color Temperature

Voltage (V)

Power (W)

Driver

IP Rate

Dimmable

Dimming

Hole Size (in)

Product Type

Application

Style

, ,

Availability

Certifications

,

Compliances

, , , , ,

Shape

Lumens
