Features

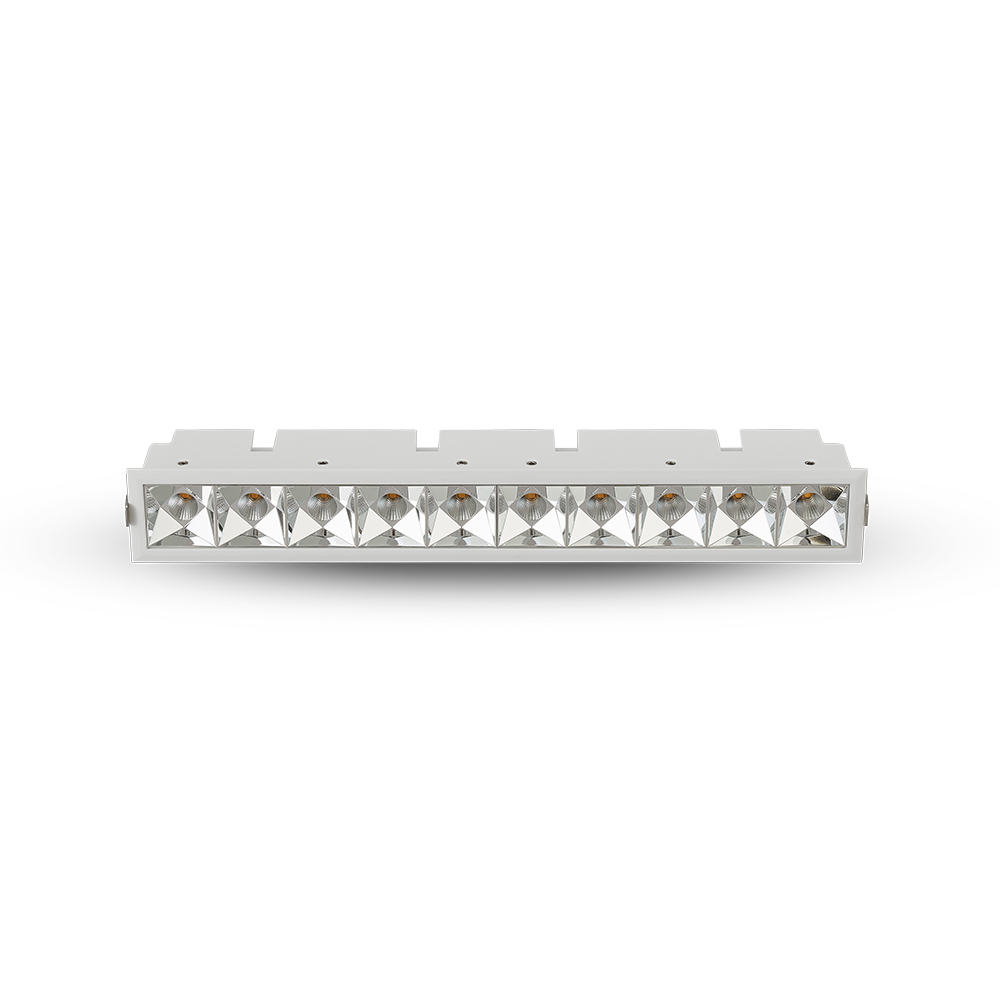

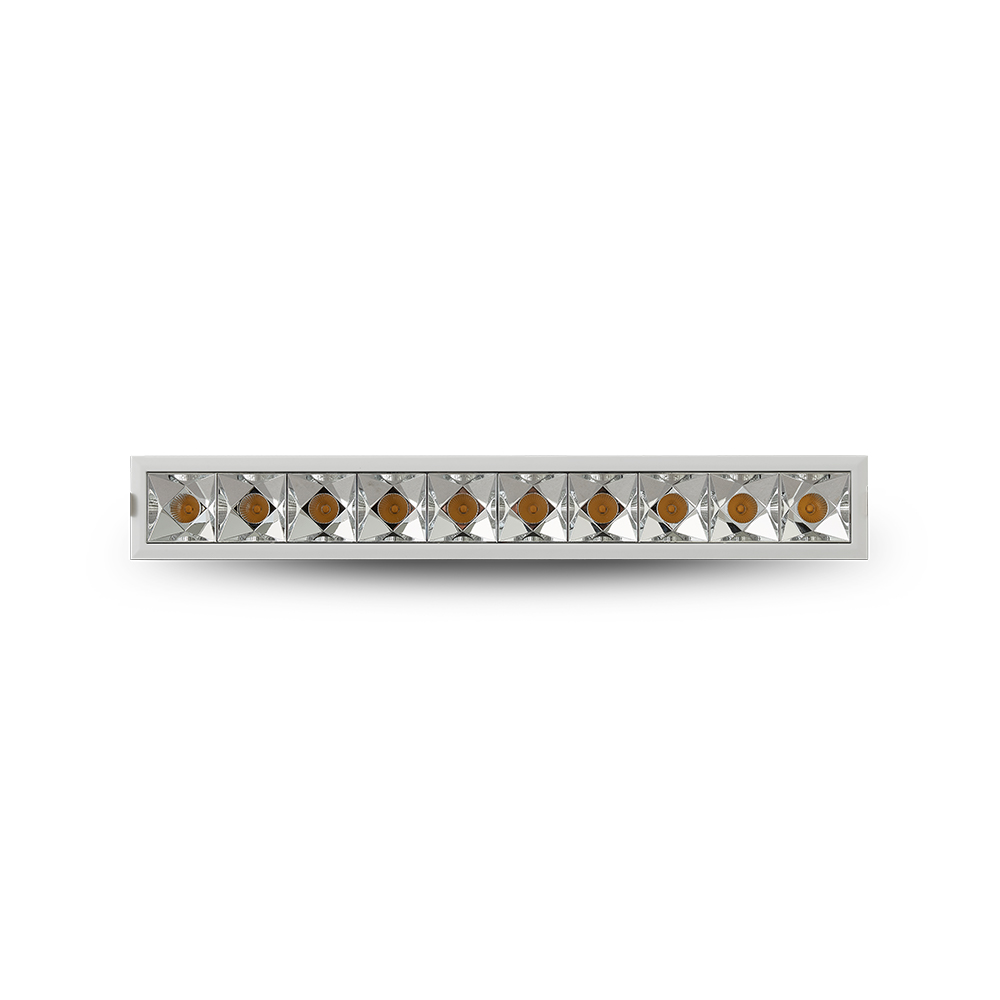

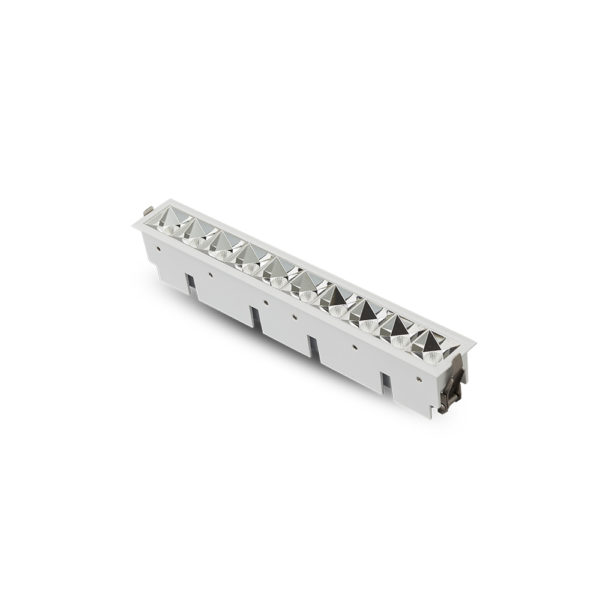

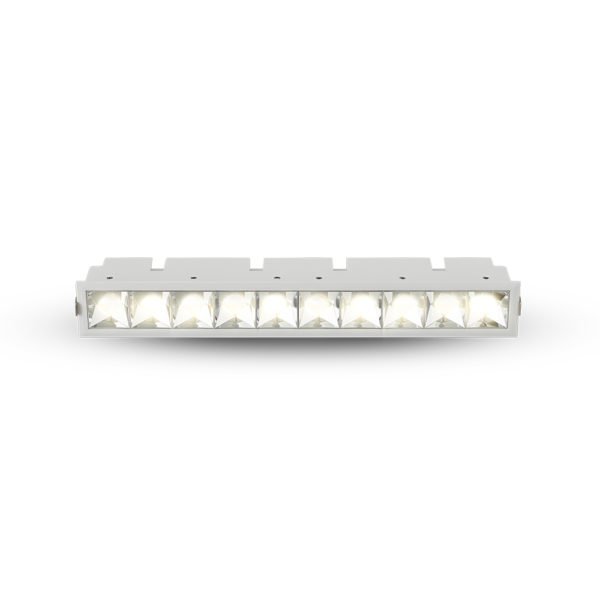

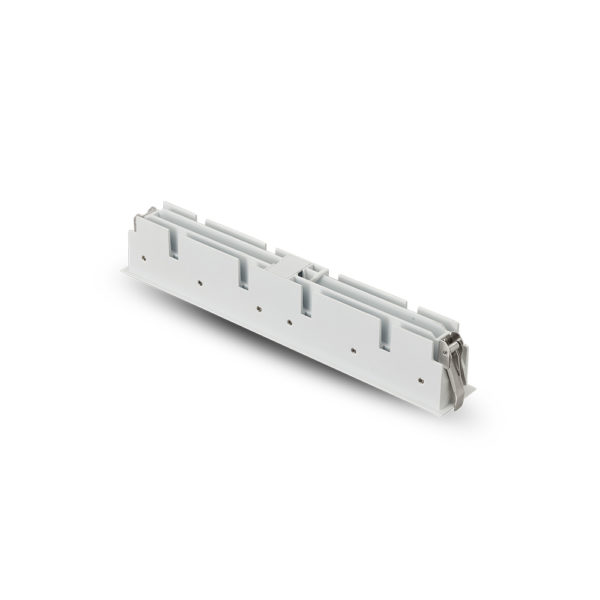

LED Fixed trim downlight, RUBIK Series
• Aluminum body structure available in White finish
• Integrated LED 10-spot fixture, recessed installation
• IC Rated
• DIMENSIONS: 12.5″L x 1.75″W x 2.25″H
• HOLE SIZE: 12″L x 1.5″W
• LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° & 48°(special order required), 34°(stock beam angle)
• STOCK BEAM ANGLE: 34°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 2401.07 Lumens
• WATTAGE: 23.8W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
