Features
Product Inspiration:
Simple, square shapes are a natural complement to the modern, contemporary, transitional, as well as traditional furniture styles found in residential, office and commercial spaces today. For this reason, the Atria collection is one of VONN’s largest and most popular collections. Among designers, the Atria collection has earned VONN accolades the world over.
Product Features:
• LED: Integrated LED fixture

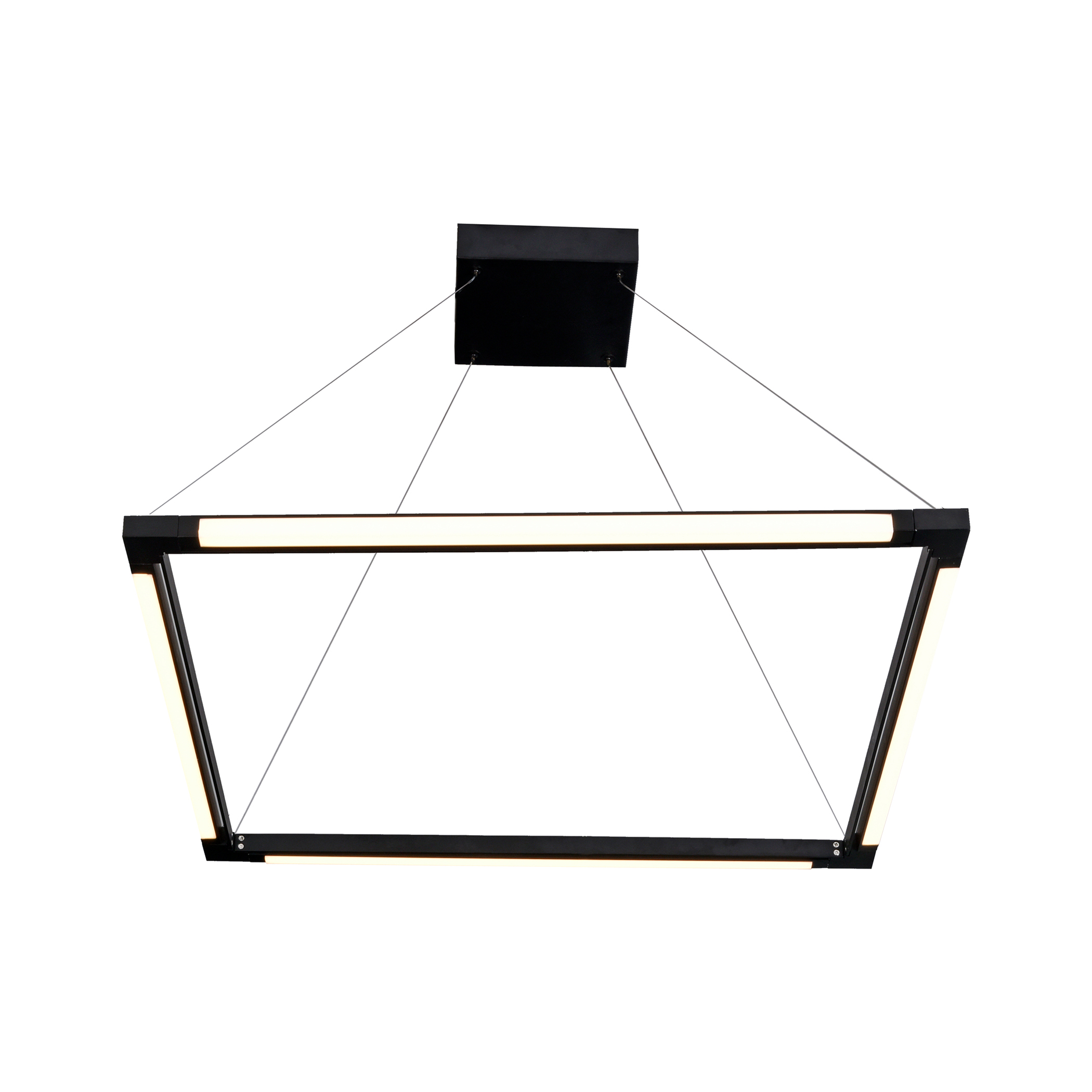

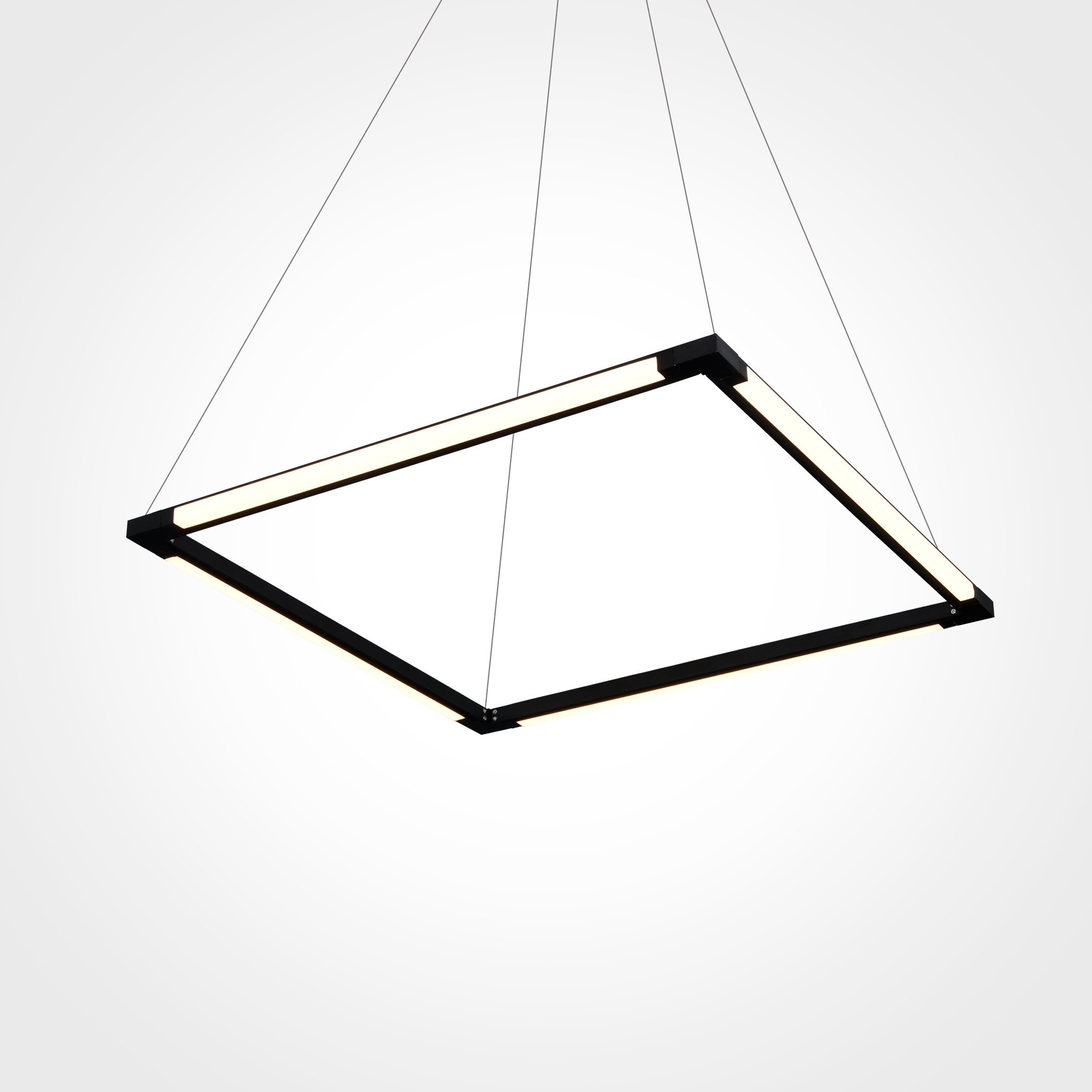

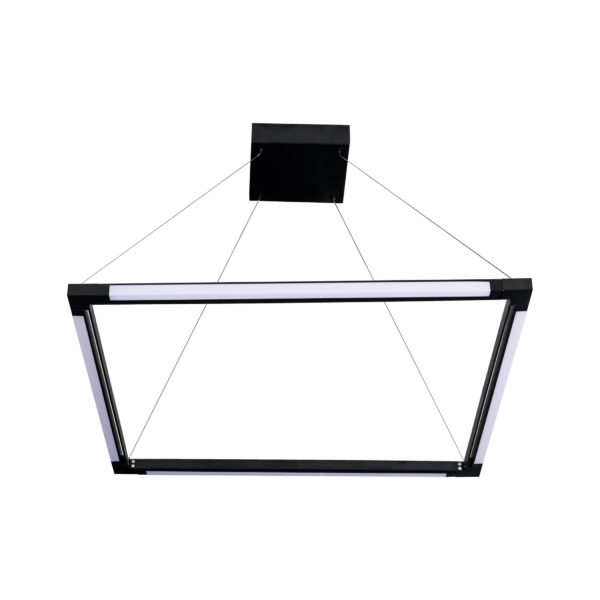

• DESIGN: Modern Square Chandelier with 180 Degree Rotation of Horizontal Axes
• LIGHT DIRECTION: Ambient

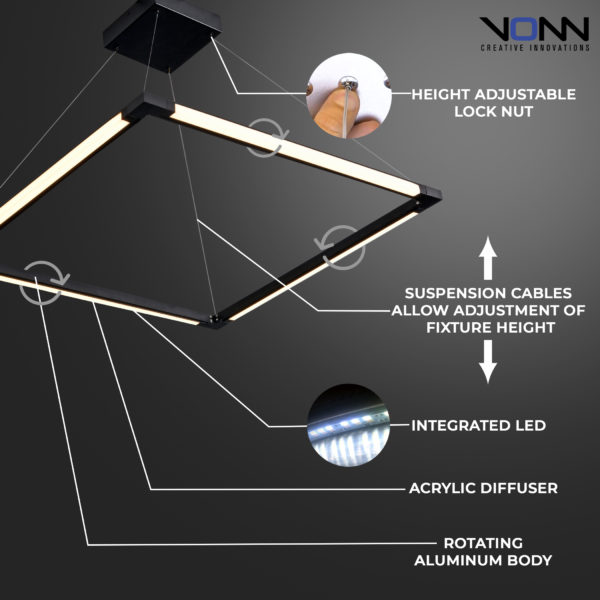

• ADJUSTABLE: Cable locking pin allow the suspension height to be easily changed post-install
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wifi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 2966 Lumens
• EFFICIENCY: 47 Watts low power consumption
• CRI 90
• DRY LOCATION APPROVED: ETL listed for dry locations
• VOLTAGE: Operates on standard 120 line voltage
• ETL Certified, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• Installer Tip: DO NOT CUT WIRES attached to the fixture under any circumstance. Excess cable should be neatly looped and tucked into the canopy
• Slanted/ Sloped Ceiling Compatible
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period
Product Specifications:
• PRODUCT DIMENSIONS: 24 inches L x 24 inches W
• OVERALL HEIGHT: minimum 10.75 inches, maximum 119.75 inches
• ROTATIVE AXIS DIMENSIONS: 24 inches L x 0.75 inches H
• CANOPY DIMENSIONS: 6.25 inches L x 6.25 inches W x 1.5 inches H
• PRODUCT WEIGHT: 5.1 Lbs.
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
