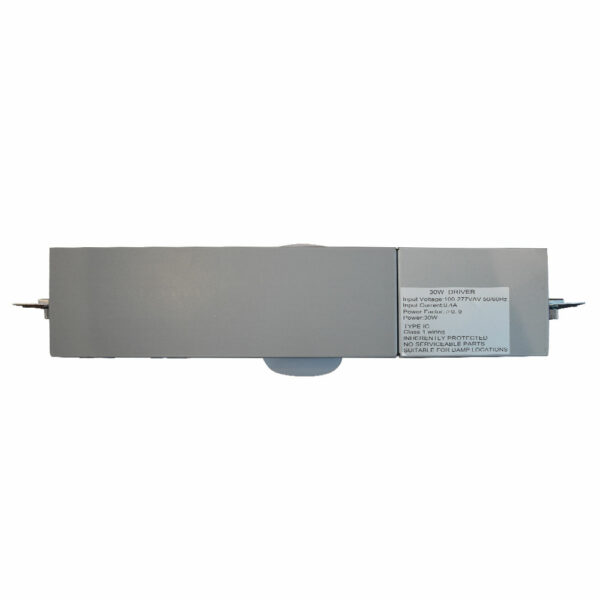

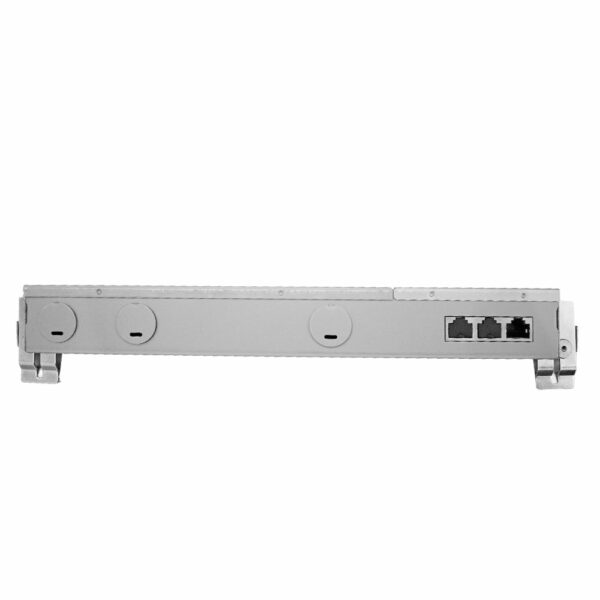

30W, 100-277V Driver For 2FT Long T-Grid LED Lighting


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

SKU: VTG2DRIVER Categories: ,
Features

Features

30W 0-10V Driver Suitable for VTG2 Series Linear Lighting

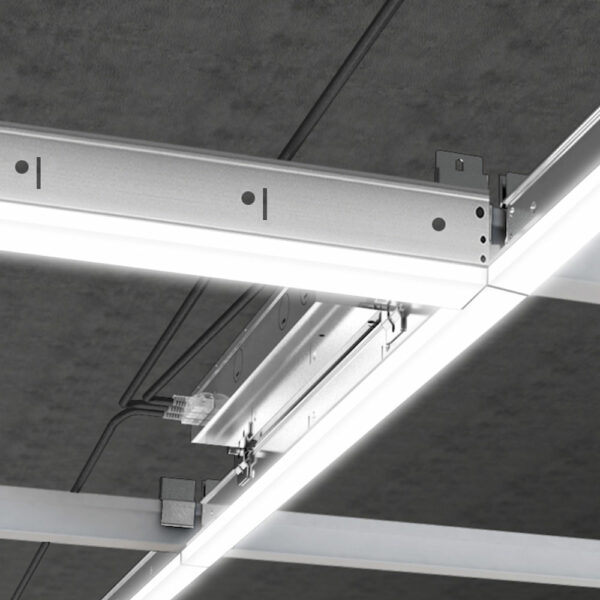

• One driver may be connected to 3 fixtures at 2′ long
• DIMENSIONS: 11.7″L x 3.23″W x 1.48″H
• DIMMING: Constant Current, 0-10V Dimming
-Dimming Range 13-100%
-Dimming Current: <1.5mA
Compatible Dimmer: Lutron: DIVA-DVTV, NOVA-NTSTV-TV
• IP20
• INPUT:
Voltage & Hz: 100-277V AC; 50Hz / 60 Hz
AC Current (Max.): 0.7A at 120V AC
Power Factor: >0.9 at 277V AC with loading 36V
THD: <18% at 277V AC with loading 36V
Inrush Current (Max.): 50 A at 277 V AC
Leakage Current: <0.5mA 120 V AC
• OUTPUT:
DC Voltage: 30-38V
Constant Current Range: 3*260 mA± 5 %
Rated Max. Power: 30W
Ripple (Max.) note.2: 0.4 Vp-p
Efficiency: 80% – 83% (120V)
• PROTECTIONS:
Over Current: 100% – 120% Constant current limiting, auto-recovery
Short Circuit: Burp power into protection mode, when the output load back to normal power supply into the normal work
• ENVIRONMENT:
Working Temp: -20°C ~ 40°C ambient operating at full load C29
Tc temp: 90°C at Ta40°C
Working Humidity: 10% ~ 90% RH non-condensing.
Storage Temp., Hum: -20 ~ +80°C, 10% ~ 90% RH
• SAFETY & EMC:
Safety Standards: UL8750 + UL1310
EMC Standards note .3: FCC Part 15B Class 2
Withstand Voltage: I/P – O/P: 3.75 K V AC
Isolation Resistance: I/P – O/P:100M ohms / 500V DC at 25°C
• CONNECTION:
Input: UL rated, 18 AWGx2 C 105°C PVC 600V 1569
Output: UL rated, 18 AWGx2 C 105°C PVC 300V 1569
Dimming: UL rated, 22AWGx2 C 105°C PVC 300V
• 3 Year Limited Warranty
NOTE: All parameters NOT specially mentioned are measured at 120V AC input, rated load and 25°C ambient temperature.
