Slim 1.3″ 4 FT LED Semi-Direct Suspended Mount Linear Lighting Fixture, 100-277V, 41W, 3500K, White


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

SKU: VSL4U25D7535KWH Categories: ,
Features

Features

Slim 1.3″ Wide 4 FT Long Linear Lighting, Up 25%, Down 75%, 3500K, White
• Integrated LED fixture, suspended installation in White Finish
• Light direction Up 25%, Down 75%, milky diffussing
-Alternative light direction available as a custom order (50% Up/50% Down; 75% Up/ 25% Down; 100% Up)
• OVERALL DIMENSIONS: 50.40″L x 1.30″W x 49.5″H

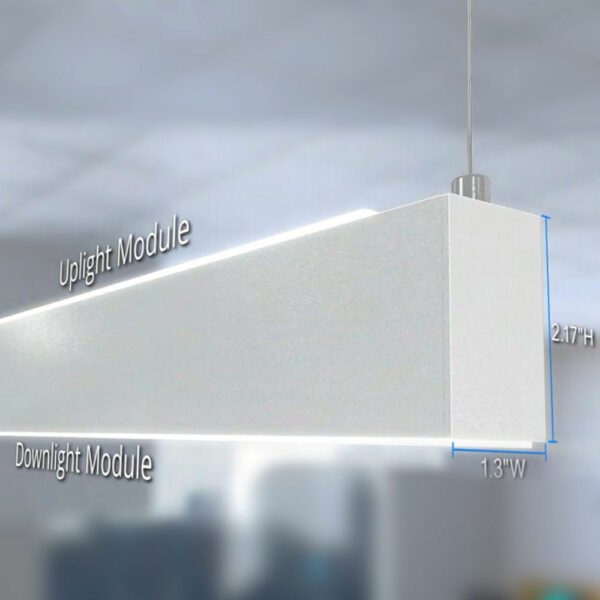

• PROFILE DIMENSIONS: 50.40″L x 1.30″W x 2.24″H
• BEAM ANGLE: 61°
• DIMMABLE: 0-10V dimming
• CCT: 3500 Kelvin color temperature
• BRIGHTNESS: 3389.8 Lumens, 82 Lm/W
• WATTAGE: 41.37W
• VOLTAGE: 100-277V
• CRI 90
• IP20
• Driver Internal
• Installation Accessories (purchase separately): Dry Ceiling or Drop Ceiling Accessory; T, L, X and Straight Line Connectors; Rolling Diffusing Lens
• UL Certified, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

Specifications

Additional information

UPC / GTIN

Lm/w

Dimming

Dimmable

IP Rate

Adjustable

CRI

Color Temperature

Voltage (V)

Power IES

Series

Luminous Flux (delivered) (Lm)

Materials

Product Height

Product Width

Product Length

Product Dimensions (in)

Finish

Beam Angle

Technical Docs

Technical Docs

Installation Guide Download
Specification Sheets Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
