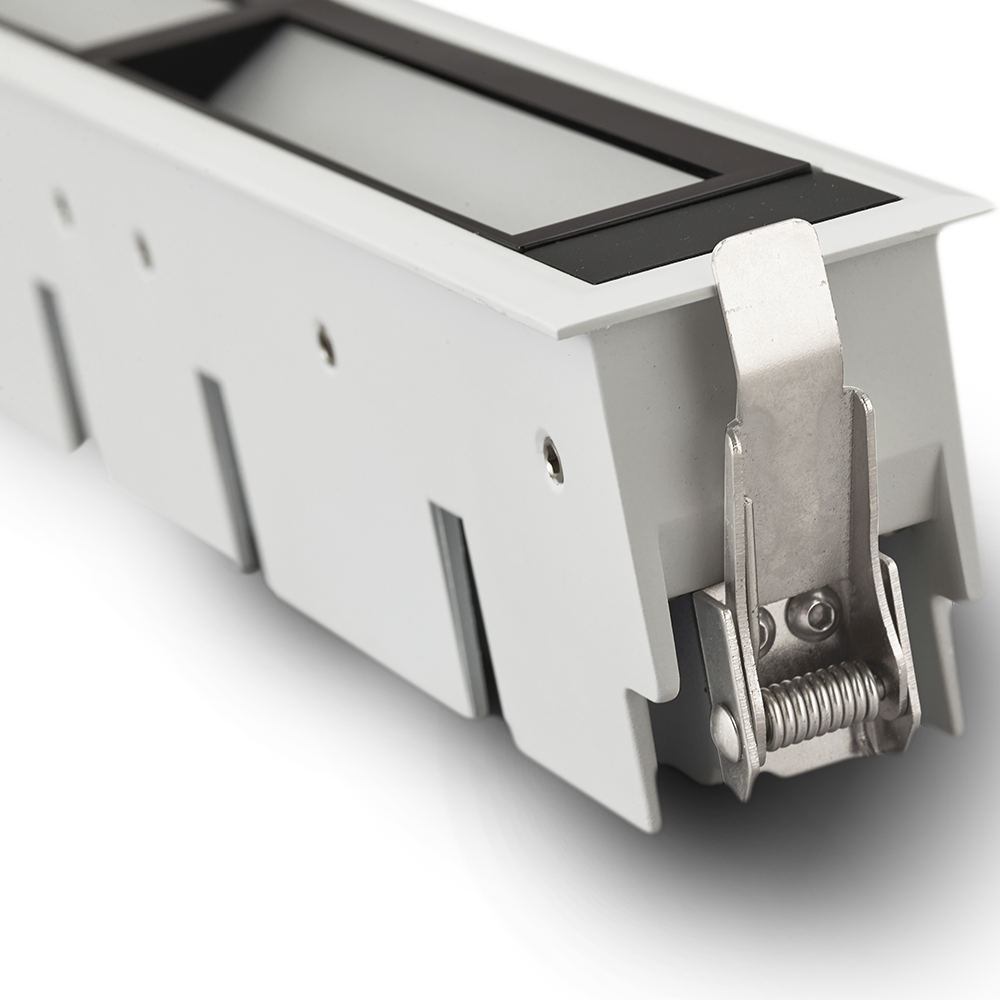

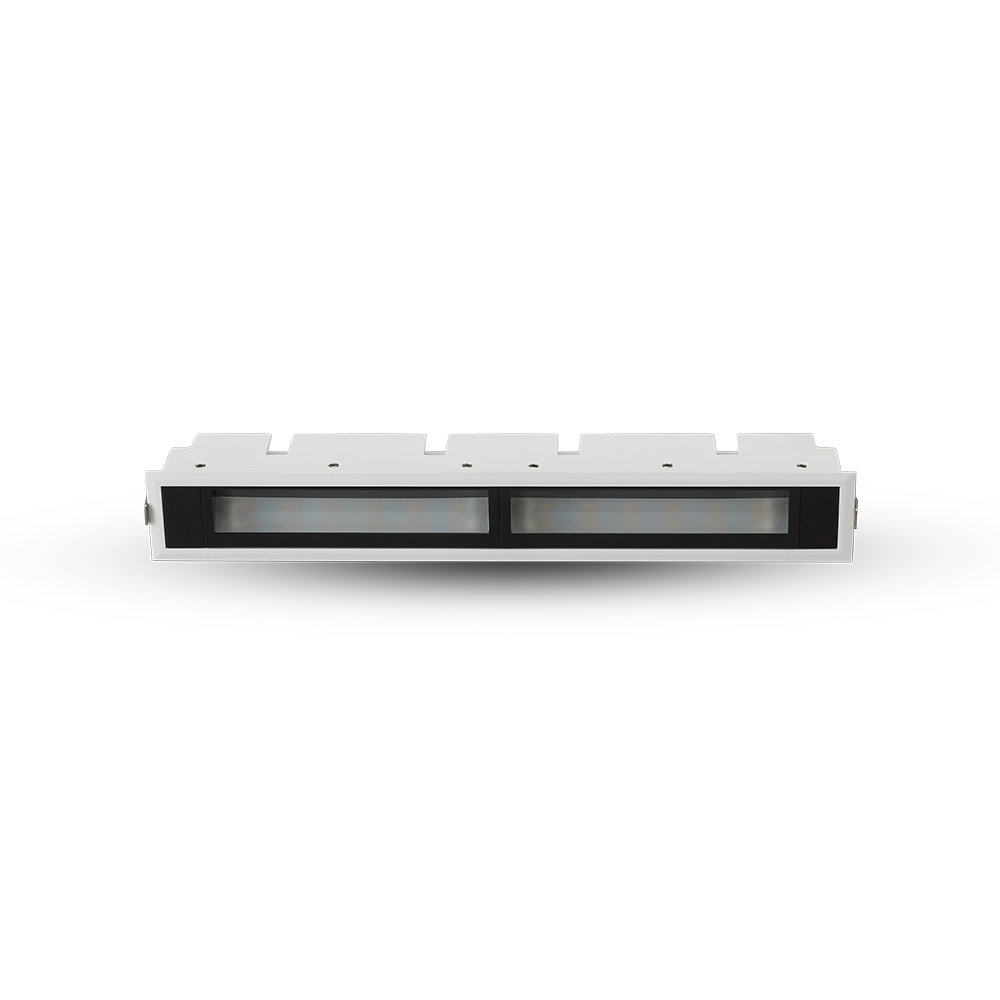

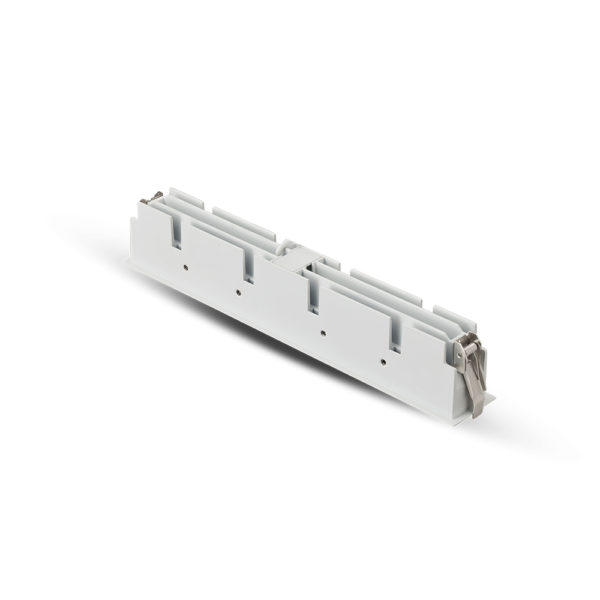

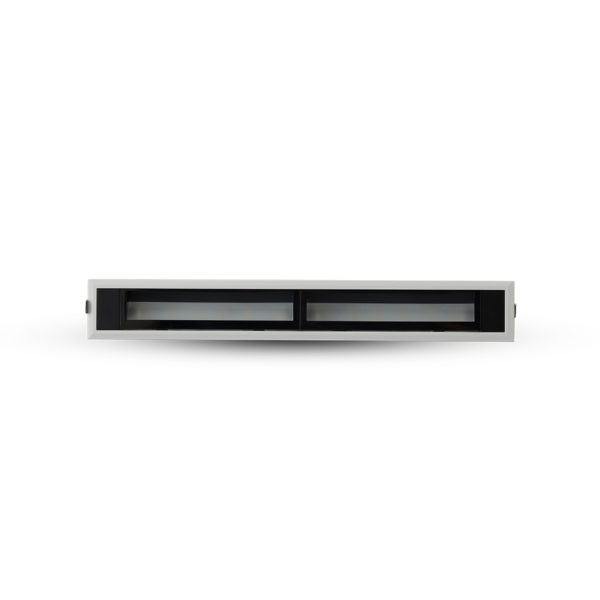

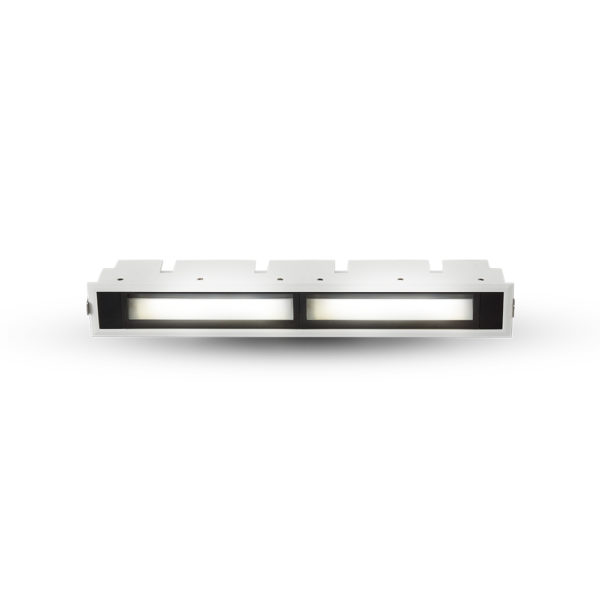

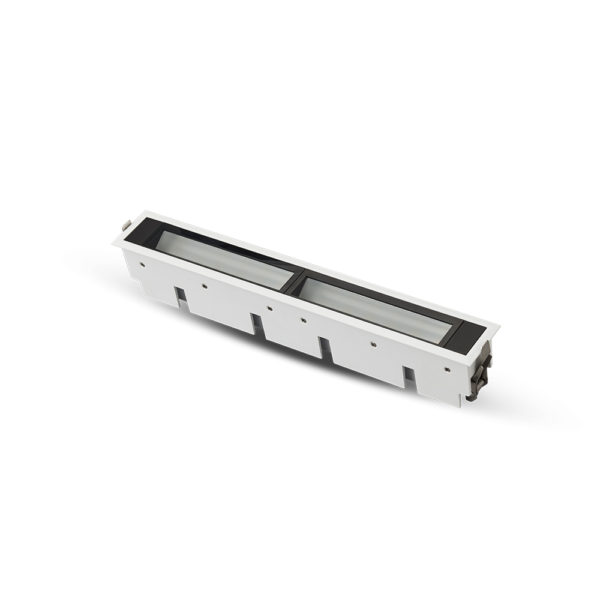

SLICE 12.5″ LED Fixed Rcessed Wall Washer w/Trim VMDL000610E024WH, White


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

12.5″ LED Fixed Rcessed Wall Washer w/Trim VMDL000610E024WH, White

SKU: VMDL000610E024WH Categories: , , , ,
Features

Features

LED Fixed trim wall washer, SLICE Series

• Aluminum body structure available in White finish
• Integrated LED wall washer, recessed installation
• IC Rated
• DIMENSIONS: 12.5″L x 1.75″W x 2.25″H
• HOLE SIZE: 12″L x 1.5″W
• LENS BEAM ANGLE: 65°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1232.08 Lumens
• WATTAGE: 24W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***

Specifications

Additional information

UPC / GTIN

Materials

Total Wattage

Availability

Style

, ,

Application

Product Type

Hole Size (in)

Dimming

Dimmable

Driver

IP Rate

CRI

Color Temperature

Voltage (V)

Luminous Flux (delivered) (Lm)

Power (W)

Series

Product Height

Product Width

Product Length

Product Dimensions (in)

Adjustable

Finish

Lense Beam Angle

Room

, , , , ,

Certifications

,

Compliances

, , , , ,

Shape

Lumens

More Ways To Shop

TECHNICAL DOCS

TECHNICAL DOCS

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
