Features

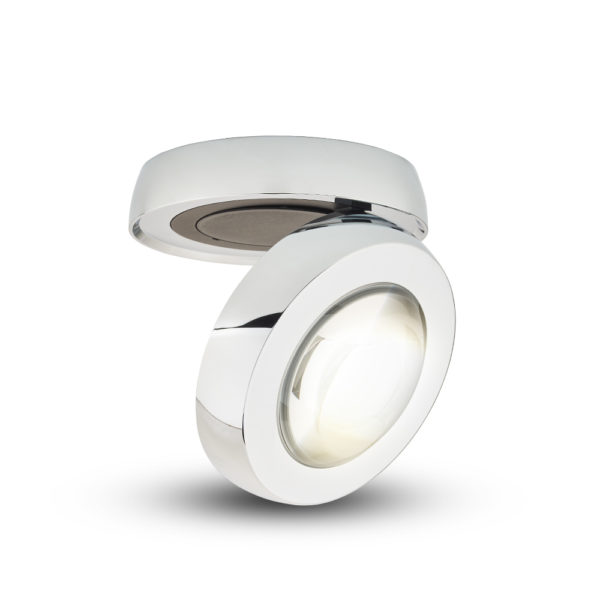

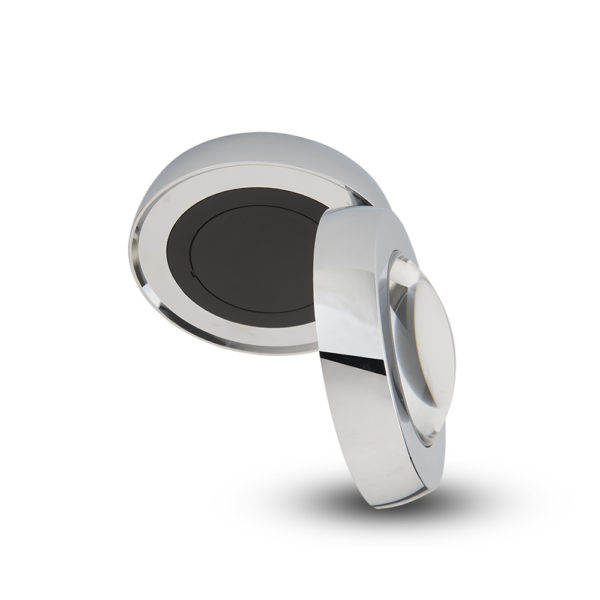

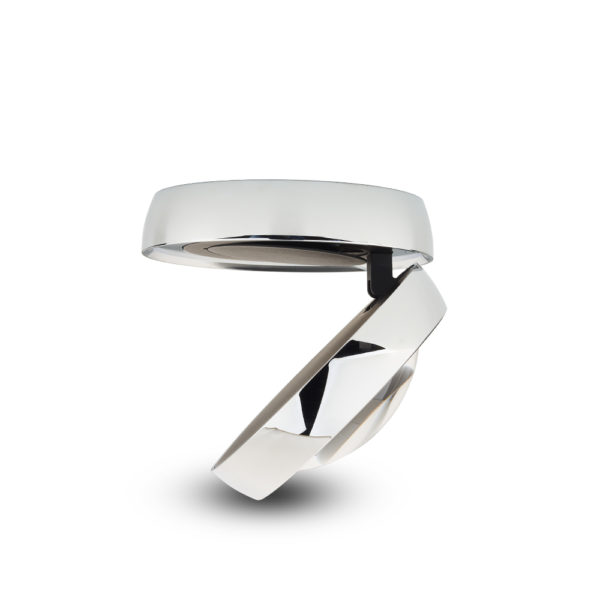

LED Adjustable wall + ceiling downlight, ORBIT Series
• Aluminum body structure available in 2 finishes Chrome and Antique Brass
• Integrated AC LED fixture, surface mounted
• IC Rated
• OVERALL DIMENSIONS: 5.25″ Diameter x 3″H, adjustable to 6.5″ H

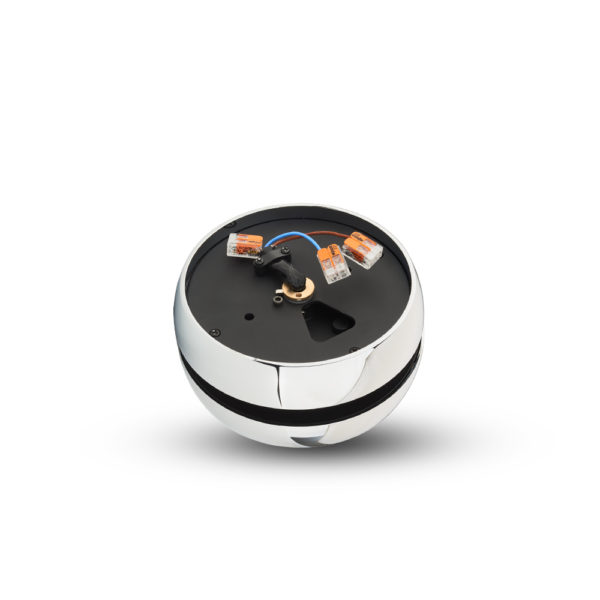

• BACKPLATE DIMENSIONS: 4.75″ Diameter x 0.5″H
• LIGHT HEAD DIMENSIONS: 5.25″ Diameter x 1.75″H
• HOLE SIZE: 3.6″L x 1.7″W, minimum plenum space 0.25″H
• LENS BEAM ANGLE: 85°
• DIMMABLE: ELV dimming
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 312.96 Lumens
• WATTAGE: 8W
• VOLTAGE: 120V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
