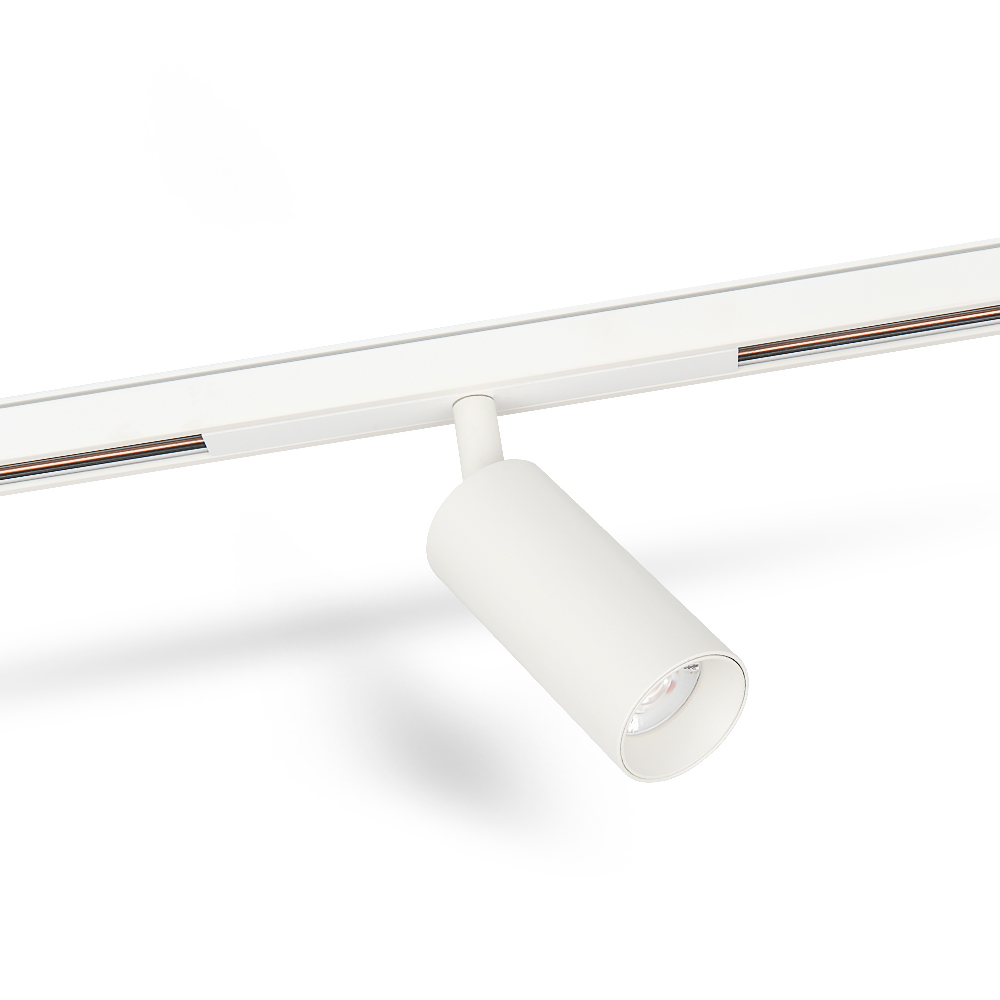

VONN VFLTSS09WH LED Spot Light Head, in White


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

SKU: VFLTSS09WH Category:
Features

Features

VFLTSS09 – LED spot light head with Magnetic installation • Finish options: Black, White • Tilts and Rotates • Dimmable • 8.9W, 783 Lm • Lumens Efficacy: 88.5 Lm/W • Voltage: DC 24V • Operating Temperature: 32-113F(0-45C) • Lamp Life: 50,000 hrs / 70% • Beam Angle: 15°, 24°, 36° • Available Kelvin temperatures: 2700K, 3000K, 3500K, 4000K • Color Rendering: CRI > 90 • Dimming: 0-10V, DALI, Forward/Reverse (with interface) • Compatible Track Systems: -Surface or Pendant: VFLT-TRS1, VFLT-TRS2 -Recessed: VFLT-TRT1, VFLT-TRT2 • NOTE: Installation into the VFLT-TRS2 or the VFLT-TRT2 track disables the ability to tilt and rotate the luminaire • 3 year Warranty • Fixture weight 0.5 LB Dimensions: Overall: 6.57″L x 1.81″W x 6.03″H Light: 1.81″ Dia x 4.02″H (with Rotating Hinge 5.32″H) Base: 6.57″L x 0.63″W x 0.71″
Specifications

Additional information

Track System Compatibility

Product Length

LED Head Height

LED Head Type

LED Head Wattage

LED Head Lumens

LED Beam Angle

Product Type

Product Dimensions (in)

Application

Technical Docs

Technical Docs

Specification Sheets Download
Installation Guide Download
IES Photometric File (PDF) – 15D Download
IES Photometric File (PDF) – 24D Download
