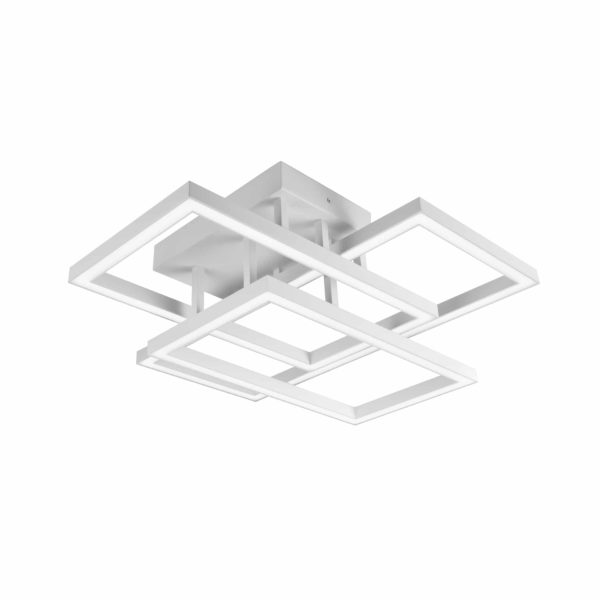

Radium VRCF49103WH 28″ Integrated LED Rectangular Ceiling Light Fixture in White


EnabLED Licensing Program for LED Luminaires and Retrofit Bulbs

Features

Features

VONN Radium Series is a collection of visionary ideas which transform creative LED innovations into artistic centerpieces. A fusion of geometric precision and the beholder’s vision, creates an artistic expression where creativity is expressed as an art form.

Product Features:

• LED: Integrated LED fixture
• DESIGN: Geometric Shape
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage Dimmers (Dimmer is not included with the fixture)
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 4575.6 lumens
• EFFICIENCY: 71.5 watts total consumption
• CRI 90
• DRY LOCATION APPROVED: ETL listed for dry locations
• VOLTAGE: Operates on standard 120 line voltage
• ETL, cETL, Title 24 Compliant, Title 20 Compliant, Prop 65 Compliant, Energy Star Compliant

Product Technologies and Benefits:

• PEARLPURE™ DIODE ARRAYS: Brilliant, full-bodied white light with high color rendering
• CONTINUU™ DRIVER: Responds to the needs of the diodes as they age
• VOPTICS™ DIFFUSERS: Engineered prismatic lenses diffuse light evenly across a wide angle
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

Product Specifications:

• TYPE: Integrated LED
• LENGTH: 28 in.
• WIDTH: 27.5 in.
• HEIGHT: 6.75 in.
• CANOPY DIMENSIONS: 12.5 in. W x 7.75 in. L x 2 in. H
• PRODUCT WEIGHT: 11.6 Lbs.

Specifications

Additional information

Series

IP Rate

Sloped Ceiling Compatible

Product Length

Product Type

Shape

Availability

Power Source

Product Width

Certifications

, , , , ,

Room

, , , ,

Height Adjustable Min

Product Depth (in.)

UPC / GTIN

Smart Features

LED Type

Title 24

Energy Star

Proposition 65

cETL

ETL

Compliances

Materials

,

LIght Direction

Install Position

Color Rendering Index

Voltage (V)

Canopy Width (In.)

Canopy Length (In.)

Warranty

Shade Diameter (In.)

Shade Height (In.)

Dimmable

Total Wattage

Style

,

Color Temperature

Bulb Type

UL ETL Rated

Finish

Product Height

Application

, ,

Lumens

Technical Documents

Technical Documents

Installation Guide Download
Specification Sheets Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download
