Features

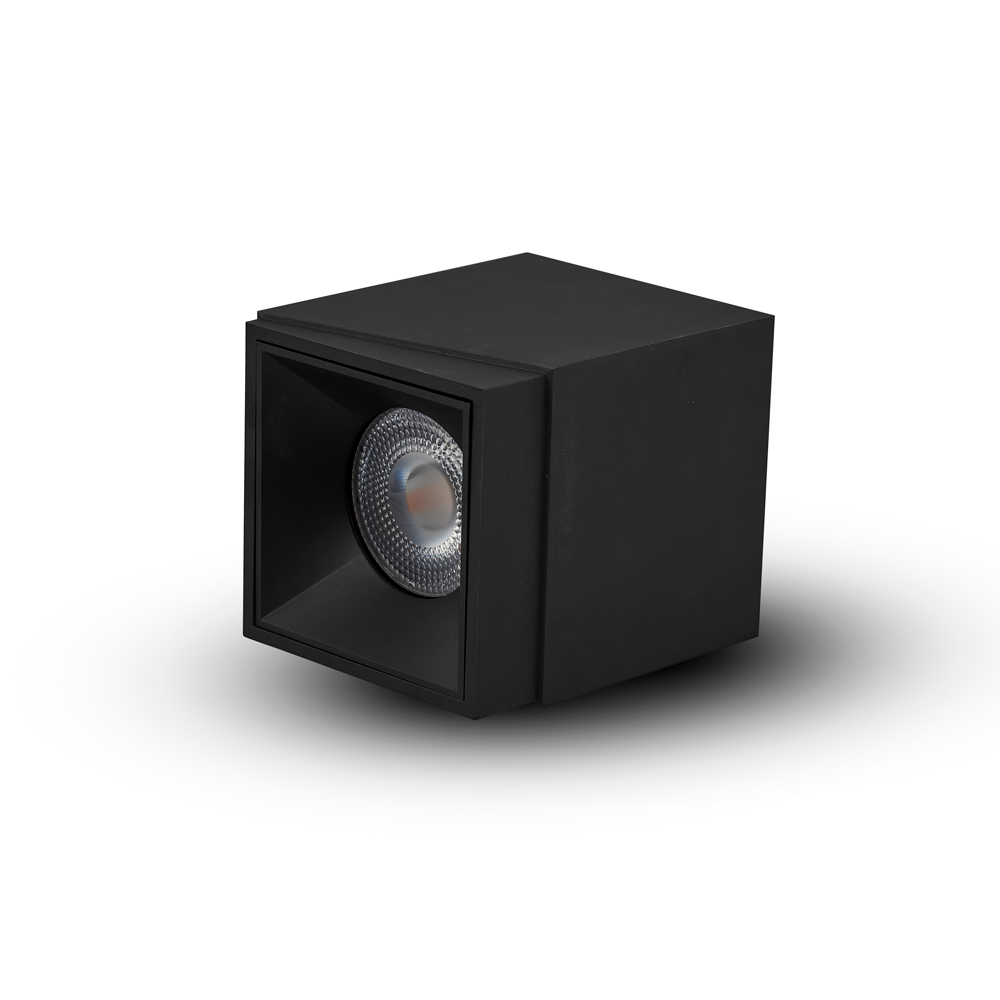

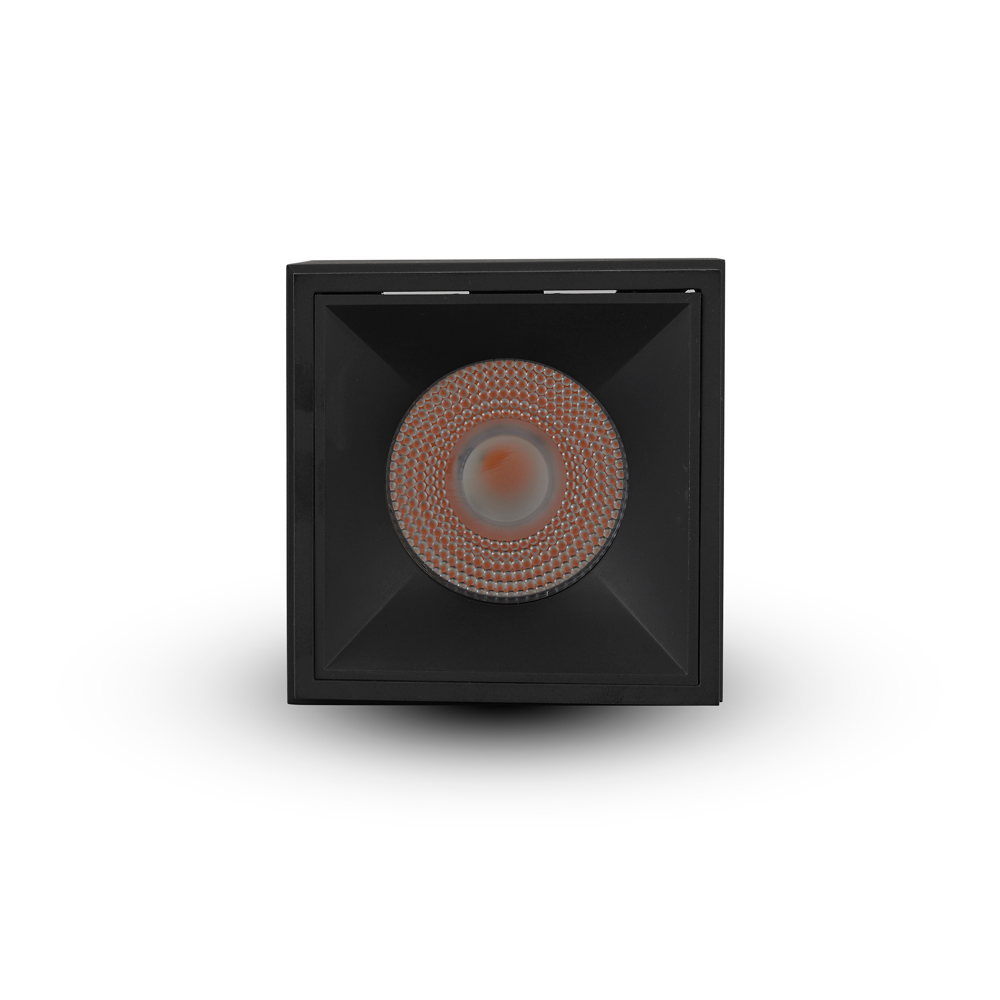

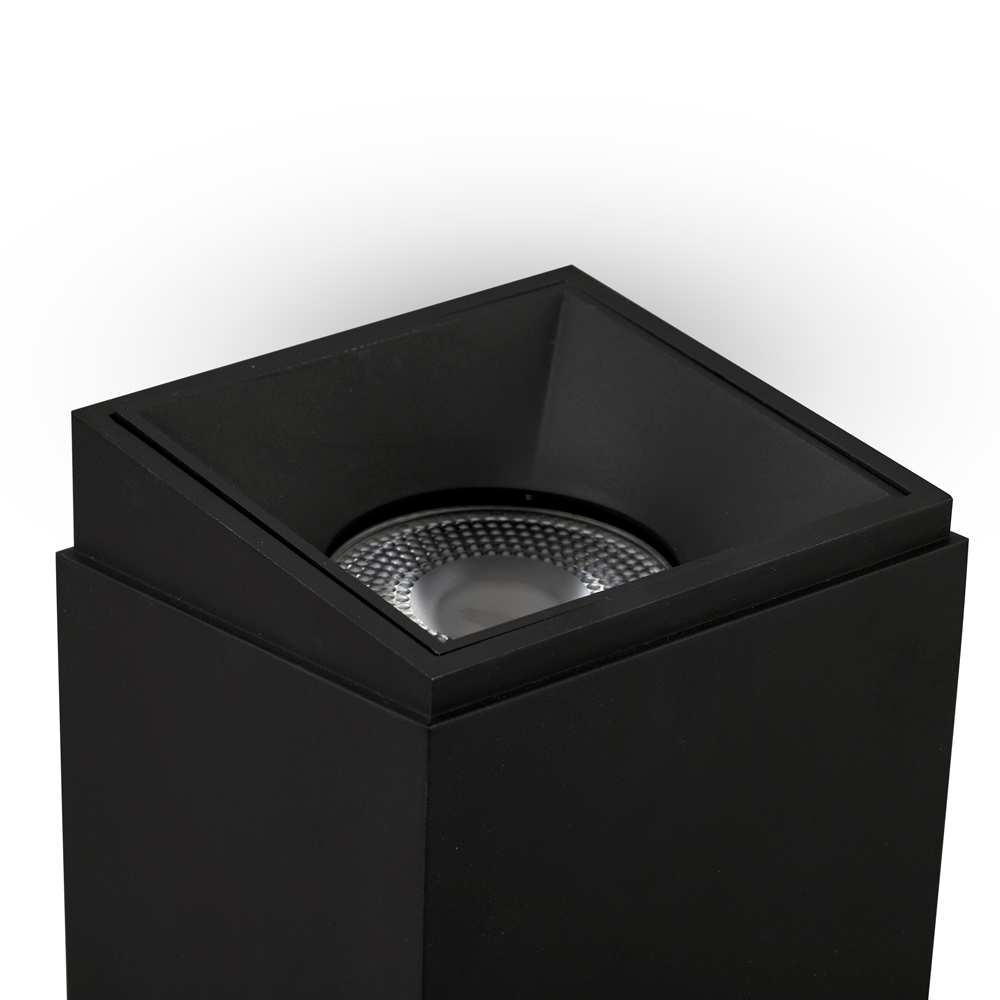

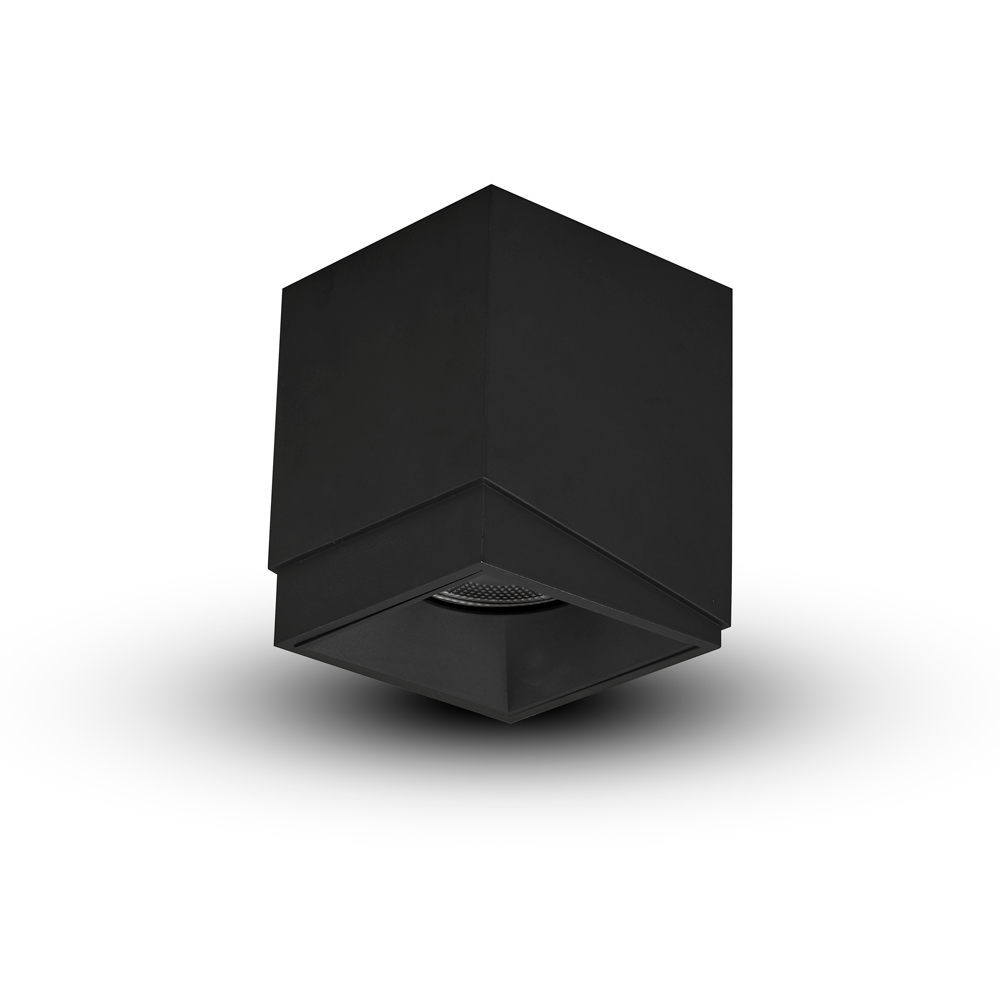

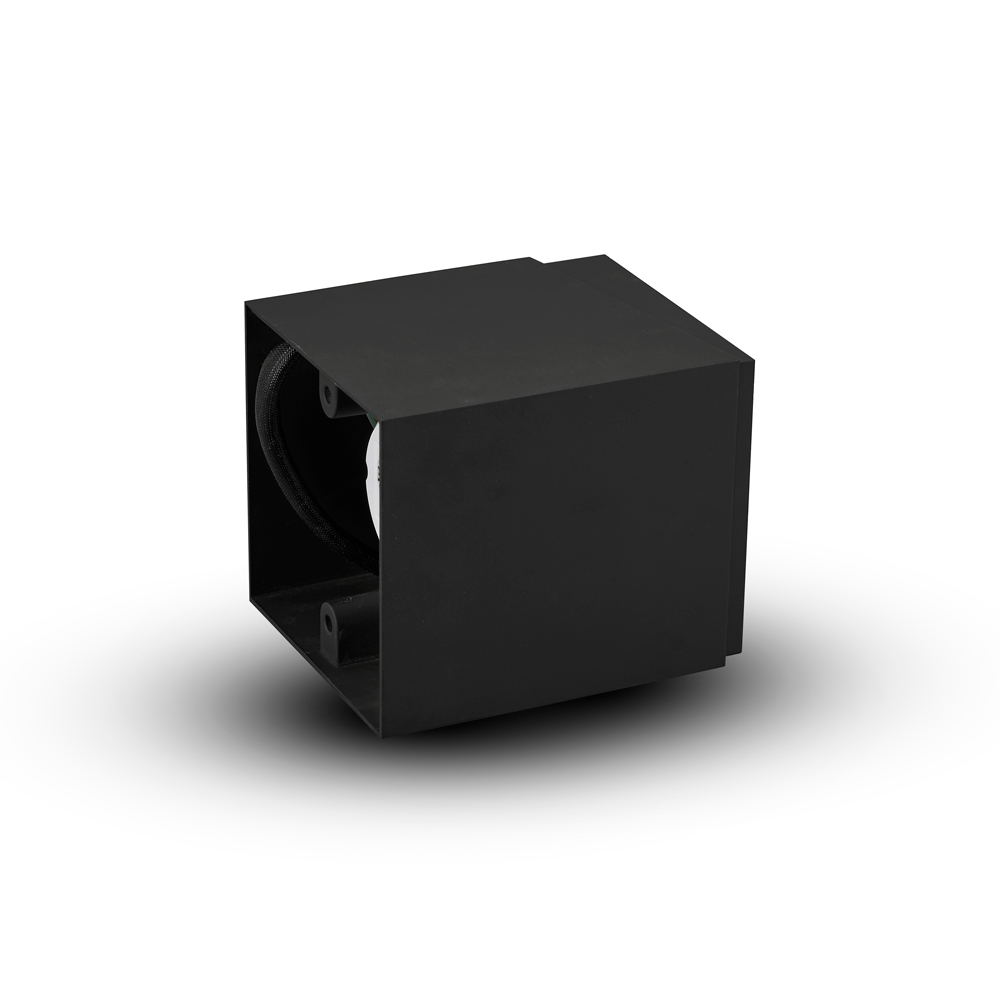

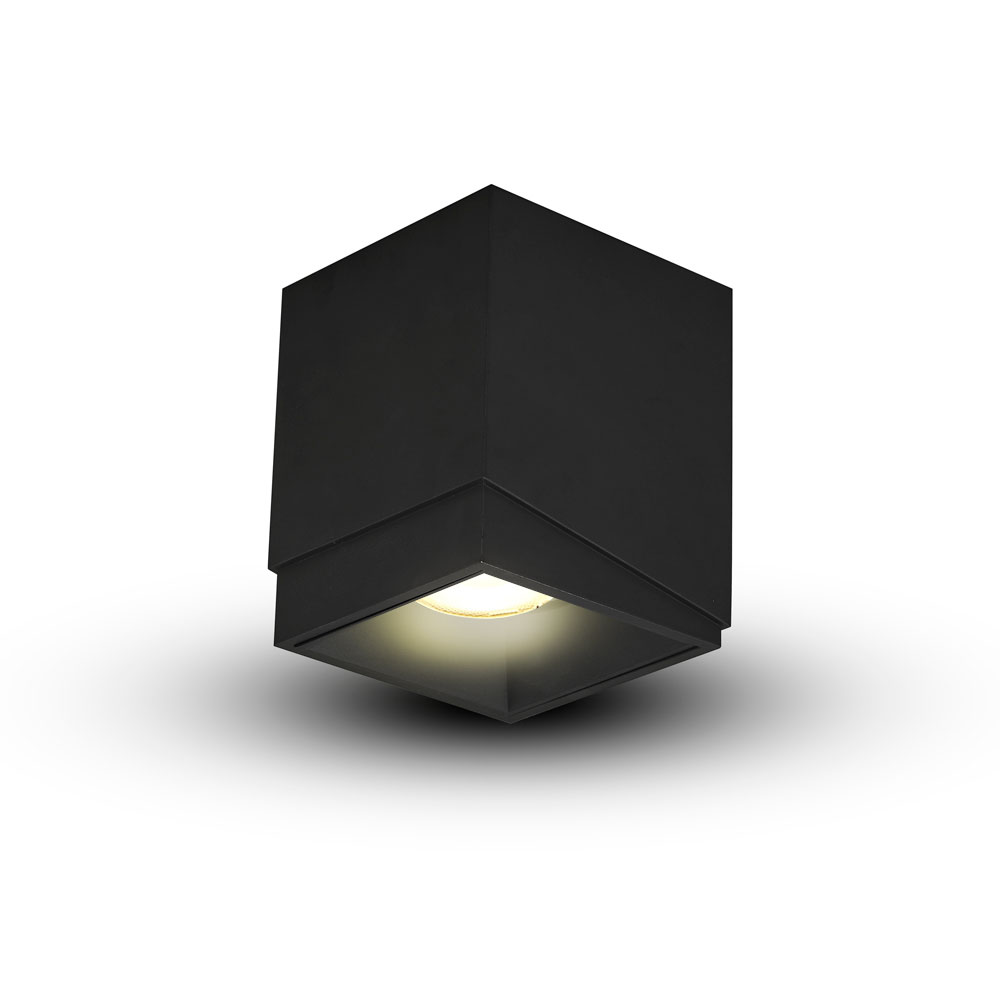

LED Surface mounted downlight, NODE Series
• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surfaced mounted
• IC Rated
• DIMENSIONS: 3.25″L x 3.25″W x 4″H
• HOLE SIZE: 0.59″ Diameter
• LENS BEAM ANGLE: offered in 4 beam angles 14°, 19° & 40°(special order required), 33°(stock beam angle)
• STOCK BEAM ANGLE: 33°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 856.38 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
